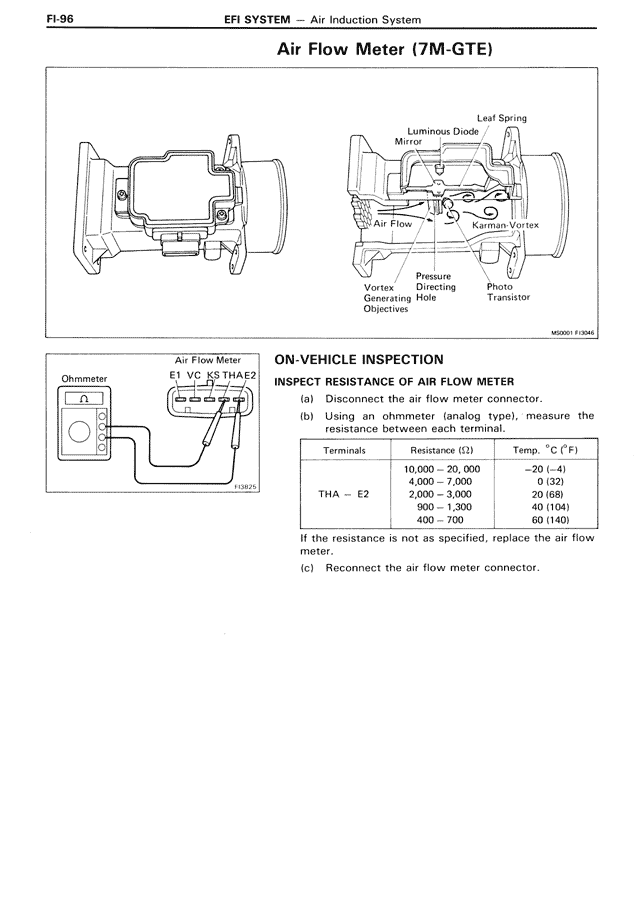

Air Flow Meter (7M-GTE) [Diagram showing Air Flow Meter components with labels:] Leaf Spring Luminous Diode Mirror Air Flow Karman Vortex Vortex Generating Objectives Pressure Directing Hole Photo Transistor MX0901 FI-9346 ON-VEHICLE INSPECTION Air Flow Meter Ohmmeter [Diagram showing ohmmeter connection] E1 VC KS THA E2 [Connector diagram] FI-M25 INSPECT RESISTANCE OF AIR FLOW METER (a) Disconnect the air flow meter connector. (b) Using an ohmmeter (analog type), measure the resistance between each terminal. Terminals Resistance (Ω) Temp. °C (°F) 10,000 — 20,000 -20 (-4) 4,000 — 7,000 0 (32) THA — E2 2,000 — 3,000 20 (68) 900 — 1,300 40 (104) 400 — 700 60 (140) If the resistance is not as specified, replace the air flow meter. (c) Reconnect the air flow meter connector.
