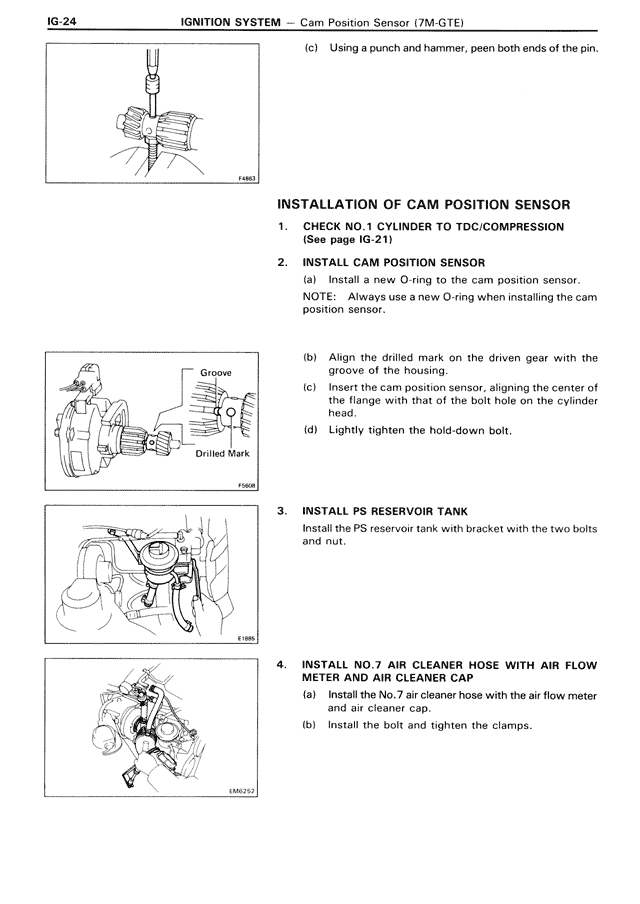

IG-24 IGNITION SYSTEM — Cam Position Sensor (7M-GTE) (c) Using a punch and hammer, peen both ends of the pin. INSTALLATION OF CAM POSITION SENSOR 1. CHECK NO.1 CYLINDER TO TDC/COMPRESSION (See page IG-21) 2. INSTALL CAM POSITION SENSOR (a) Install a new O-ring to the cam position sensor. NOTE: Always use a new O-ring when installing the cam position sensor. (b) Align the drilled mark on the driven gear with the groove of the housing. (c) Insert the cam position sensor, aligning the center of the flange with that of the bolt hole on the cylinder head. (d) Lightly tighten the hold-down bolt. 3. INSTALL PS RESERVOIR TANK Install the PS reservoir tank with bracket with the two bolts and nut. 4. INSTALL NO.7 AIR CLEANER HOSE WITH AIR FLOW METER AND AIR CLEANER CAP (a) Install the No.7 air cleaner hose with the air flow meter and air cleaner cap. (b) Install the bolt and tighten the clamps.
