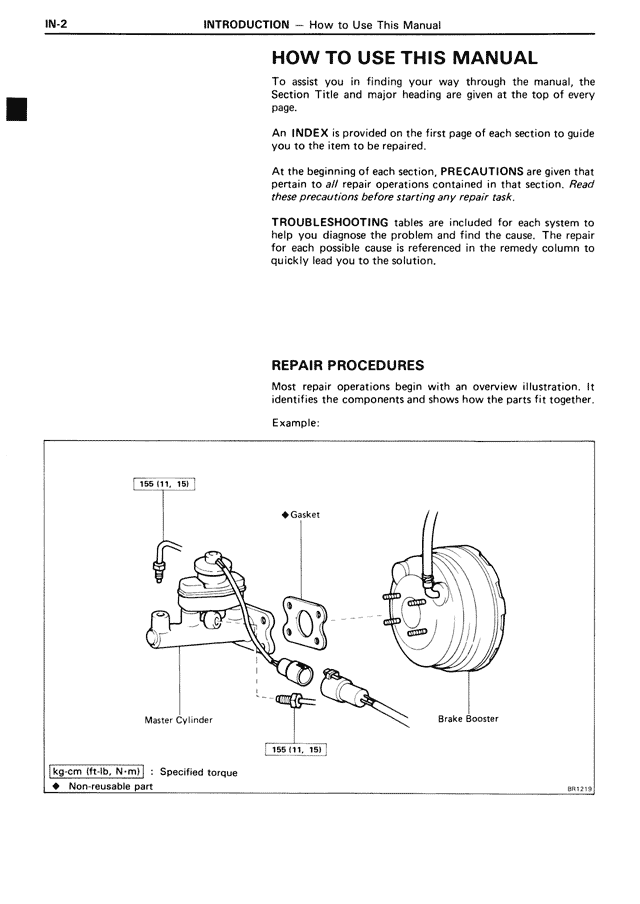

HOW TO USE THIS MANUAL
To assist you in finding your way through the manual, the Section Title and major headings are given at the top of every page.
An INDEX is provided on the first page of each section to guide you to the item to be repaired.
At the beginning of each section, PRECAUTIONS are given that pertain to all repair operations contained in that section. Read these precautions before starting any repair task.
TROUBLESHOOTING tables are included for each system to help you diagnose the problem and find the cause. The remedy for each possible cause is referenced in the remedy column to quickly lead you to the solution.
REPAIR PROCEDURES
Most repair operations begin with an overview illustration. It identifies the components and shows how the parts fit together.
Example:
[Diagram showing Master Cylinder and Brake Booster assembly]
155 (11, 15)
◆Gasket
Master Cylinder
Brake Booster
155 (11, 15)
kg·cm (ft·lb, N·m) : Specified torque
◆ Non-reusable part
BR1213
