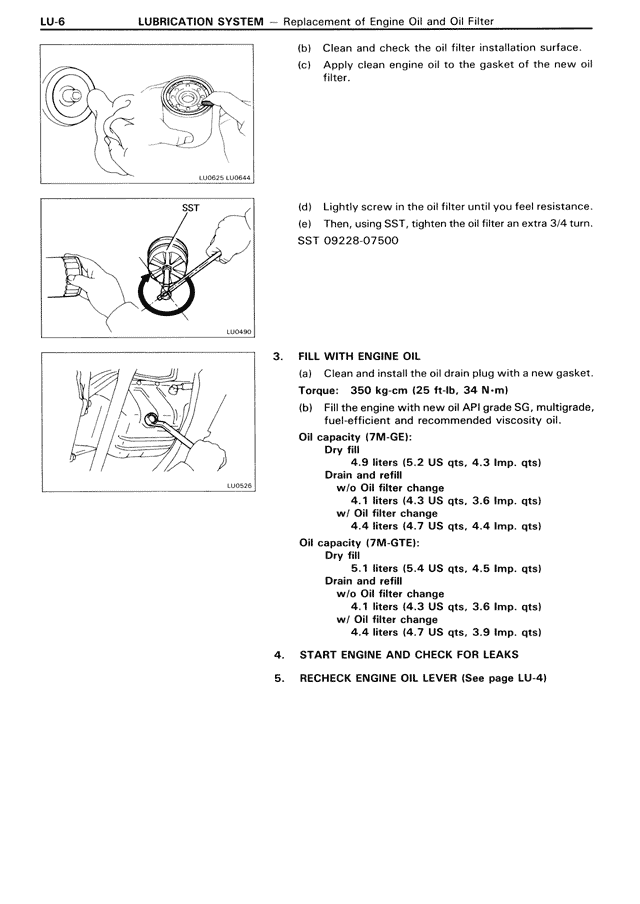

LU-6 LUBRICATION SYSTEM — Replacement of Engine Oil and Oil Filter
(b) Clean and check the oil filter installation surface.
(c) Apply clean engine oil to the gasket of the new oil filter.
LU0525 LU0644
(d) Lightly screw in the oil filter until you feel resistance.
(e) Then, using SST, tighten the oil filter an extra 3/4 turn.
SST 09228-07500
SST
LU0490
3. FILL WITH ENGINE OIL
(a) Clean and install the oil drain plug with a new gasket.
Torque: 350 kg·cm (25 ft·lb, 34 N·m)
(b) Fill the engine with new oil API grade SG, multigrade, fuel-efficient and recommended viscosity oil.
Oil capacity (7M-GE):
Dry fill
4.9 liters (5.2 US qts, 4.3 Imp. qts)
Drain and refill
w/o Oil filter change
4.1 liters (4.3 US qts, 3.6 Imp. qts)
w/ Oil filter change
4.4 liters (4.7 US qts, 4.4 Imp. qts)
Oil capacity (7M-GTE):
Dry fill
5.1 liters (5.4 US qts, 4.5 Imp. qts)
Drain and refill
w/o Oil filter change
4.1 liters (4.3 US qts, 3.6 Imp. qts)
w/ Oil filter change
4.4 liters (4.7 US qts, 3.9 Imp. qts)
4. START ENGINE AND CHECK FOR LEAKS
5. RECHECK ENGINE OIL LEVER (See page LU-4)
LU0526
