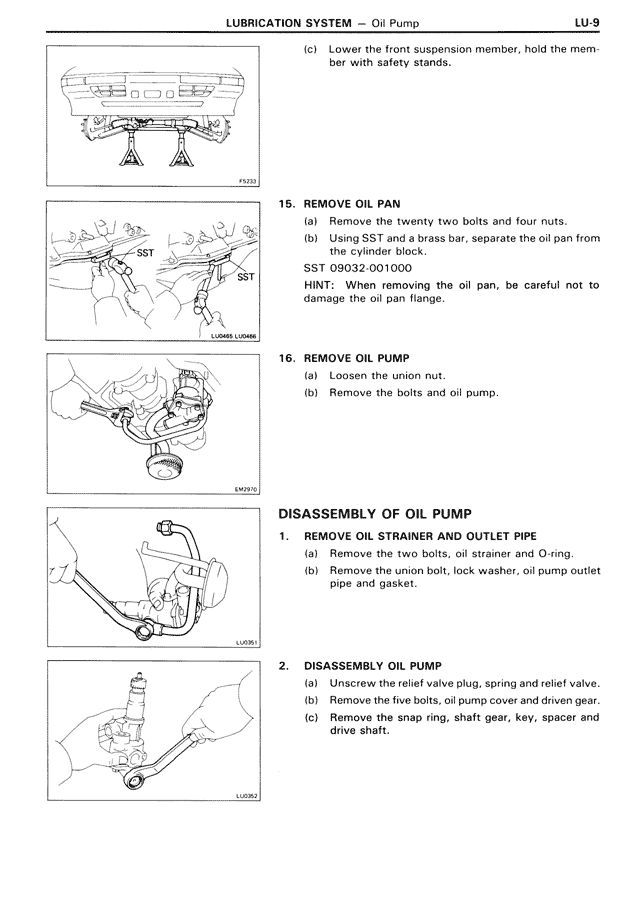

LUBRICATION SYSTEM — Oil Pump LU-9
(c) Lower the front suspension member, hold the member with safety stands.
15. REMOVE OIL PAN
(a) Remove the twenty two bolts and four nuts.
(b) Using SST and a brass bar, separate the oil pan from the cylinder block.
SST 09032-00100D
HINT: When removing the oil pan, be careful not to damage the oil pan flange.
16. REMOVE OIL PUMP
(a) Loosen the union nut.
(b) Remove the bolts and oil pump.
DISASSEMBLY OF OIL PUMP
1. REMOVE OIL STRAINER AND OUTLET PIPE
(a) Remove the two bolts, oil strainer and O-ring.
(b) Remove the union bolt, lock washer, oil pump outlet pipe and gasket.
2. DISASSEMBLY OIL PUMP
(a) Unscrew the relief valve plug, spring and relief valve.
(b) Remove the five bolts, oil pump cover and driven gear.
(c) Remove the snap ring, shaft gear, key, spacer and drive shaft.
