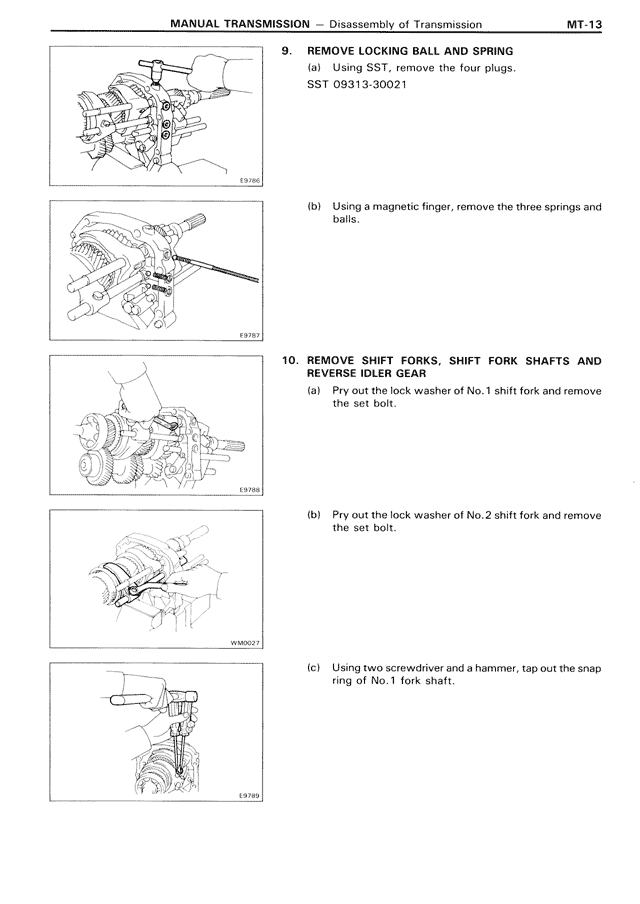

9. REMOVE LOCKING BALL AND SPRING
(a) Using SST, remove the four plugs.
SST 09313-30021
(b) Using a magnetic finger, remove the three springs and balls.
10. REMOVE SHIFT FORKS, SHIFT FORK SHAFTS AND REVERSE IDLER GEAR
(a) Pry out the lock washer of No.1 shift fork and remove the set bolt.
(b) Pry out the lock washer of No.2 shift fork and remove the set bolt.
(c) Using two screwdriver and a hammer, tap out the snap ring of No. 1 fork shaft.
