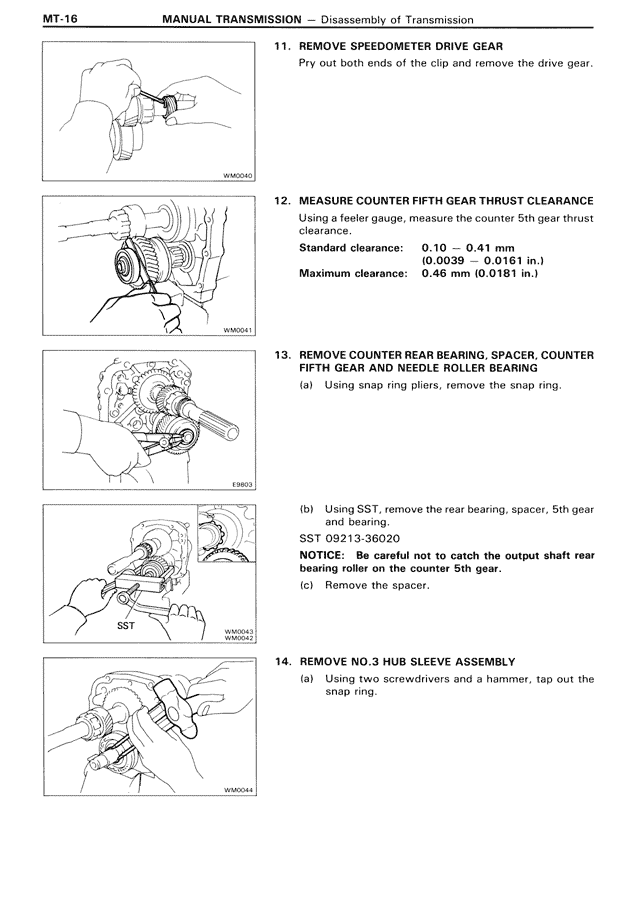

11. REMOVE SPEEDOMETER DRIVE GEAR Pry out both ends of the clip and remove the drive gear. 12. MEASURE COUNTER FIFTH GEAR THRUST CLEARANCE Using a feeler gauge, measure the counter 5th gear thrust clearance. Standard clearance: 0.10 — 0.41 mm (0.0039 — 0.0161 in.) Maximum clearance: 0.46 mm (0.0181 in.) 13. REMOVE COUNTER REAR BEARING, SPACER, COUNTER FIFTH GEAR AND NEEDLE ROLLER BEARING (a) Using snap ring pliers, remove the snap ring. (b) Using SST, remove the rear bearing, spacer, 5th gear and bearing. SST 09213-36020 NOTICE: Be careful not to catch the output shaft rear bearing roller on the counter 5th gear. (c) Remove the spacer. 14. REMOVE NO.3 HUB SLEEVE ASSEMBLY (a) Using two screwdrivers and a hammer, tap out the snap ring.
