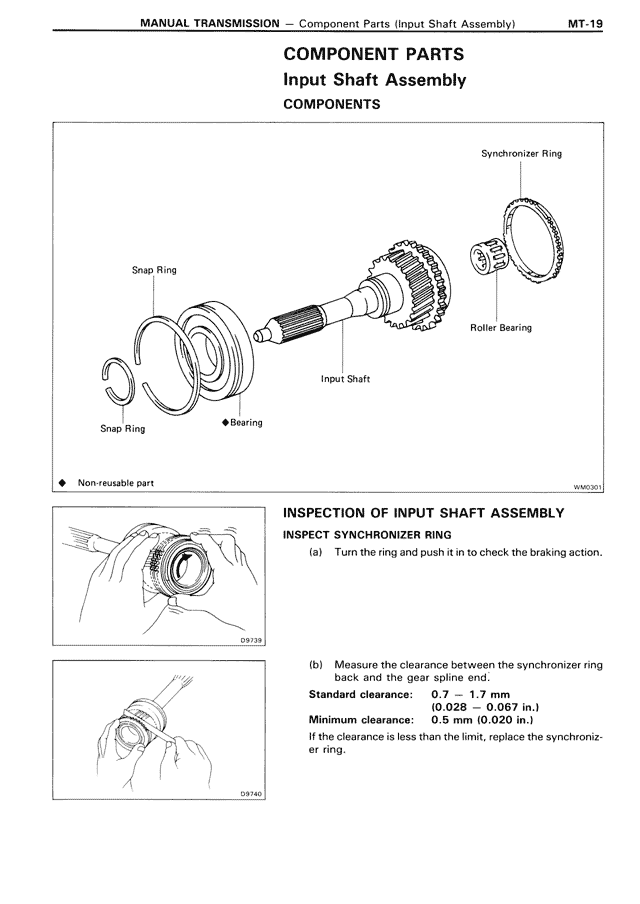

MANUAL TRANSMISSION — Component Parts (Input Shaft Assembly) MT-19
COMPONENT PARTS
Input Shaft Assembly
COMPONENTS
Synchronizer Ring
Snap Ring
Roller Bearing
Input Shaft
Snap Ring
♦Bearing
♦ Non-reusable part
WA0520
INSPECTION OF INPUT SHAFT ASSEMBLY
INSPECT SYNCHRONIZER RING
(a) Turn the ring and push it in to check the braking action.
D9738
(b) Measure the clearance between the synchronizer ring back and the gear spline end.
Standard clearance: 0.7 – 1.7 mm
(0.028 – 0.067 in.)
Minimum clearance: 0.5 mm (0.020 in.)
If the clearance is less than the limit, replace the synchronizer ring.
D9740
