Transmission
Transmission types W58 and R154 are constant mesh synchronizers for forward gear and a sliding mesh reverse gear.

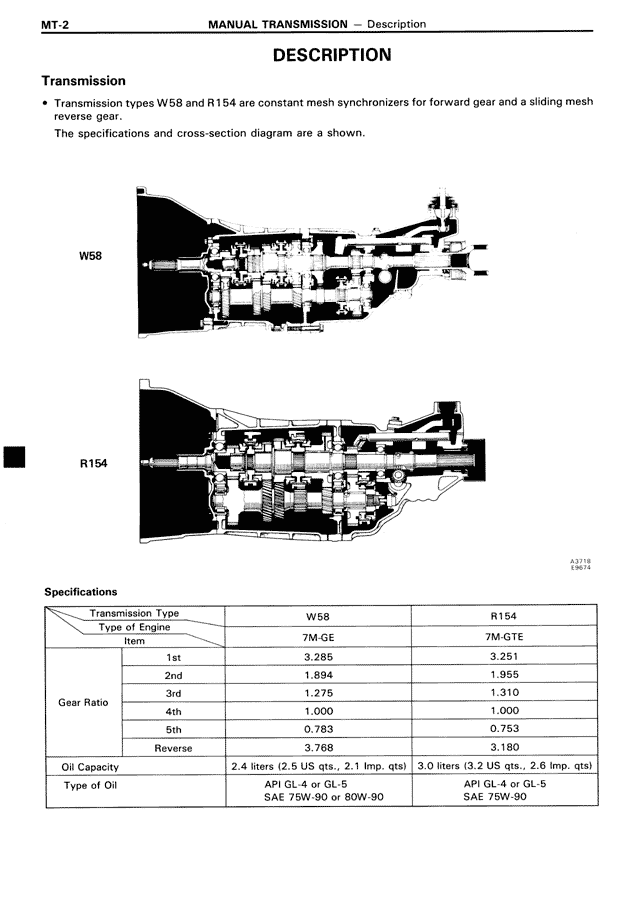

The specifications and cross-section diagram are a shown.
W58
R154
A 07155
12/89
Specifications
Transmission Type
Type of Engine
Item
1st
2nd
3rd
4th
5th
Reverse
Gear Ratio
Oil Capacity
Type of Oil
W58
7M-GE
3.285
1.894
1.275
1.000
0.783
3.768
2.4 liters (2.5 US qts., 2.1 Imp. qts)
API GL-4 or GL-5
SAE 75W-90 or 80W-90
R154
7M-GTE
3.251
1.955
1.310
1.000
0.753
3.180
3.0 liters (3.2 US qts., 2.6 Imp. qts)
API GL-4 or GL-5
SAE 75W-90
