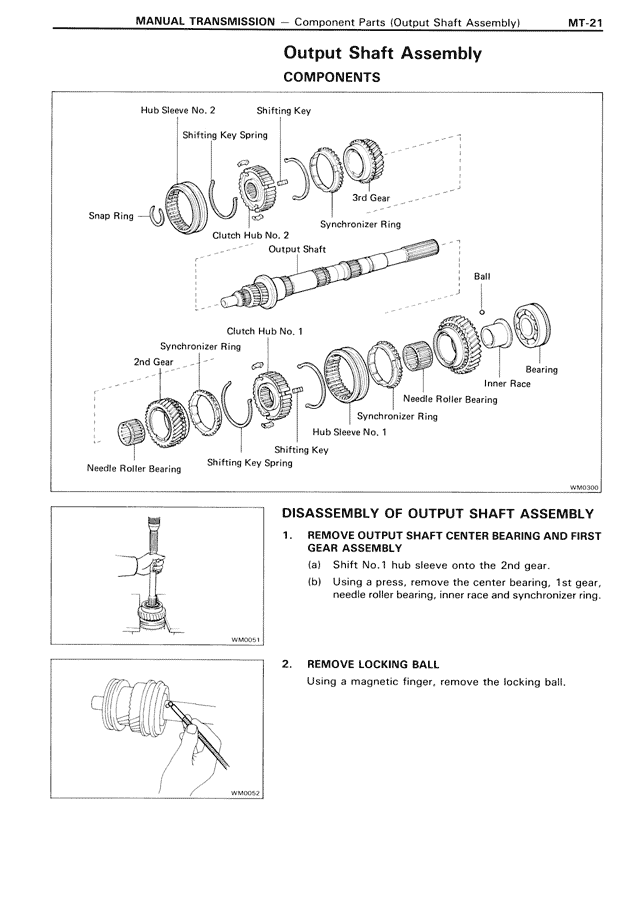

Output Shaft Assembly
COMPONENTS
Hub Sleeve No. 2
Shifting Key
Shifting Key Spring
Snap Ring
Clutch Hub No. 2
3rd Gear
Synchronizer Ring
Output Shaft
Ball
Clutch Hub No. 1
Synchronizer Ring
2nd Gear
Bearing
Inner Race
Needle Roller Bearing
Synchronizer Ring
Hub Sleeve No. 1
Shifting Key
Shifting Key Spring
Needle Roller Bearing
WM0300
DISASSEMBLY OF OUTPUT SHAFT ASSEMBLY
1. REMOVE OUTPUT SHAFT CENTER BEARING AND FIRST GEAR ASSEMBLY
(a) Shift No.1 hub sleeve onto the 2nd gear.
(b) Using a press, remove the center bearing, 1st gear, needle roller bearing, inner race and synchronizer ring.
WM0051
2. REMOVE LOCKING BALL
Using a magnetic finger, remove the locking ball.
WM0052
