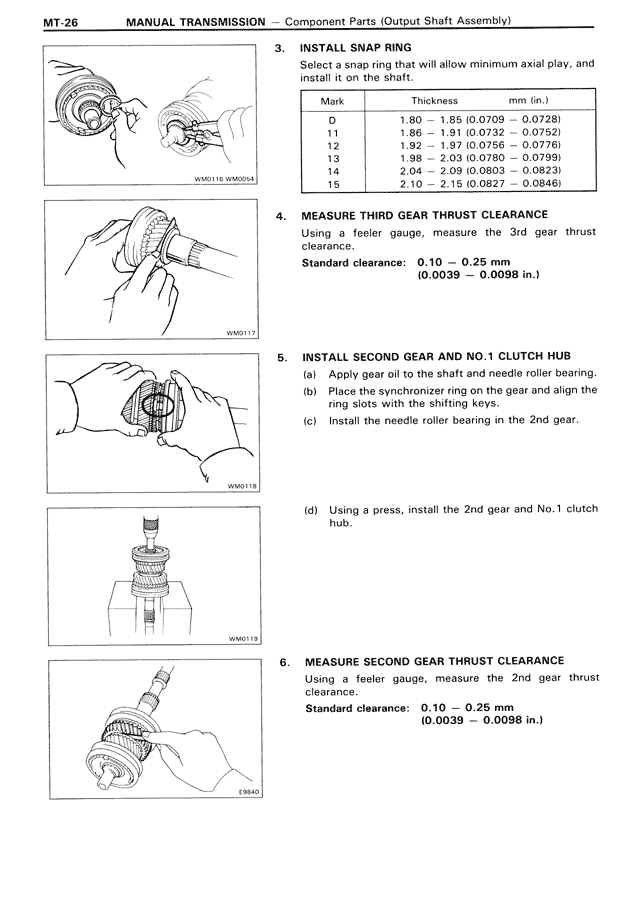

MT-26 MANUAL TRANSMISSION — Component Parts (Output Shaft Assembly)
3. INSTALL SNAP RING
Select a snap ring that will allow minimum axial play, and install it on the shaft.
Mark Thickness mm (in.)
D 1.80 — 1.85 (0.0709 — 0.0728)
11 1.86 — 1.91 (0.0732 — 0.0752)
12 1.92 — 1.97 (0.0756 — 0.0776)
13 1.98 — 2.03 (0.0780 — 0.0799)
14 2.04 — 2.09 (0.0803 — 0.0823)
15 2.10 — 2.15 (0.0827 — 0.0846)
4. MEASURE THIRD GEAR THRUST CLEARANCE
Using a feeler gauge, measure the 3rd gear thrust clearance.
Standard clearance: 0.10 — 0.25 mm
(0.0039 — 0.0098 in.)
5. INSTALL SECOND GEAR AND NO.1 CLUTCH HUB
(a) Apply gear oil to the shaft and needle roller bearing.
(b) Place the synchronizer ring on the gear and align the ring slots with the shifting keys.
(c) Install the needle roller bearing in the 2nd gear.
(d) Using a press, install the 2nd gear and No.1 clutch hub.
6. MEASURE SECOND GEAR THRUST CLEARANCE
Using a feeler gauge, measure the 2nd gear thrust clearance.
Standard clearance: 0.10 — 0.25 mm
(0.0039 — 0.0098 in.)
