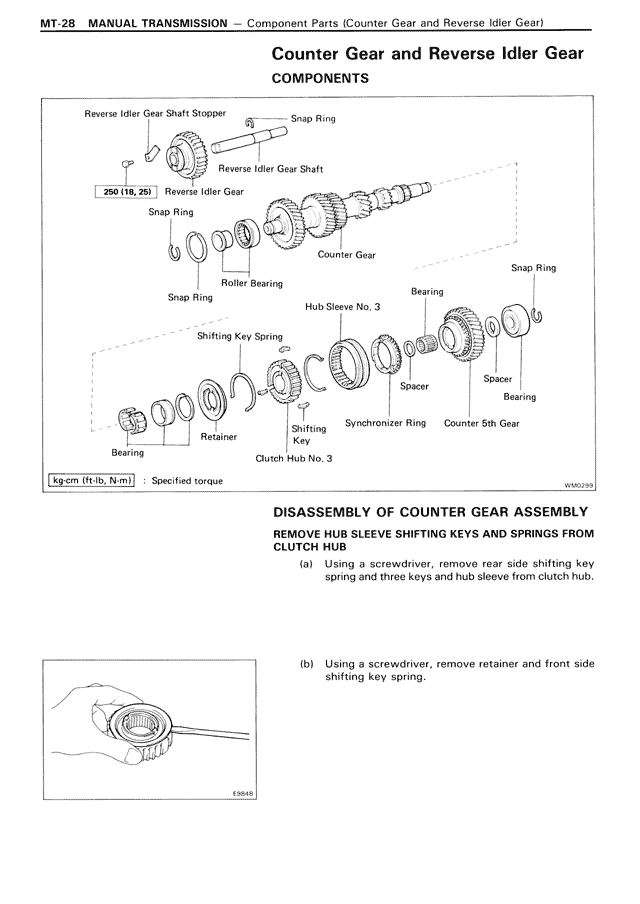

Counter Gear and Reverse Idler Gear COMPONENTS Reverse Idler Gear Shaft Stopper Snap Ring Reverse Idler Gear Shaft 250 (18, 25) Reverse Idler Gear Snap Ring Counter Gear Snap Ring Roller Bearing Bearing Hub Sleeve No. 3 Snap Ring Snap Ring Shifting Key Spring Spacer Spacer Bearing Counter 5th Gear Synchronizer Ring Shifting Key Retainer Clutch Hub No. 3 Bearing kg·cm (ft·lb, N·m) : Specified torque WM0283 DISASSEMBLY OF COUNTER GEAR ASSEMBLY REMOVE HUB SLEEVE SHIFTING KEYS AND SPRINGS FROM CLUTCH HUB (a) Using a screwdriver, remove rear side shifting key spring and three keys and hub sleeve from clutch hub. (b) Using a screwdriver, remove retainer and front side shifting key spring. E0648
