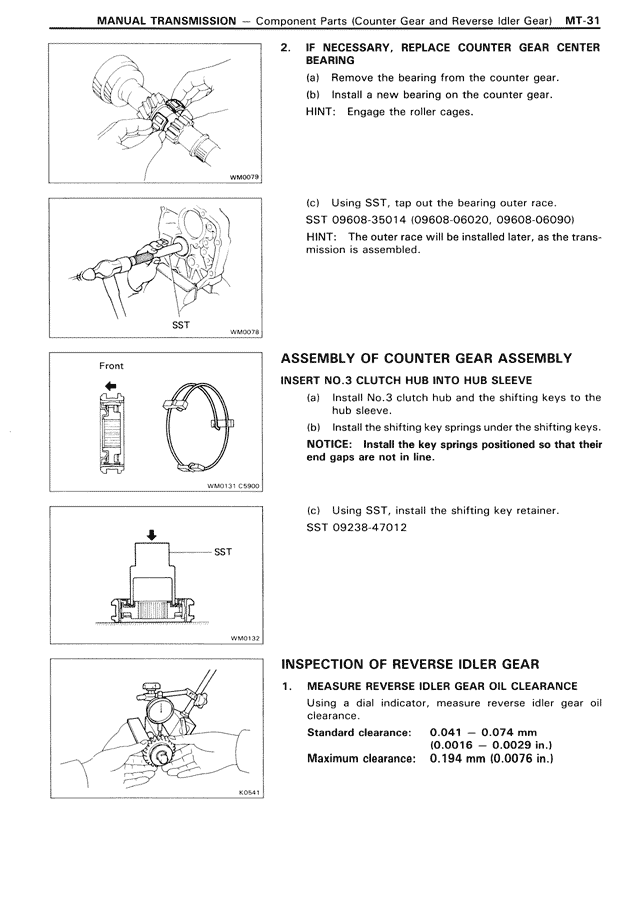

MANUAL TRANSMISSION — Component Parts (Counter Gear and Reverse Idler Gear) MT-31
2. IF NECESSARY, REPLACE COUNTER GEAR CENTER BEARING
(a) Remove the bearing from the counter gear.
(b) Install a new bearing on the counter gear.
HINT: Engage the roller cages.
(c) Using SST, tap out the bearing outer race.
SST 09608-35014 (09608-06020, 09608-06090)
HINT: The outer race will be installed later, as the transmission is assembled.
ASSEMBLY OF COUNTER GEAR ASSEMBLY
INSERT NO.3 CLUTCH HUB INTO HUB SLEEVE
(a) Install No.3 clutch hub and the shifting keys to the hub sleeve.
(b) Install the shifting key springs under the shifting keys.
NOTICE: Install the key springs positioned so that their end gaps are not in line.
(c) Using SST, install the shifting key retainer.
SST 09238-47012
INSPECTION OF REVERSE IDLER GEAR
1. MEASURE REVERSE IDLER GEAR OIL CLEARANCE
Using a dial indicator, measure reverse idler gear oil clearance.
Standard clearance: 0.041 - 0.074 mm
(0.0016 - 0.0029 in.)
Maximum clearance: 0.194 mm (0.0076 in.)
