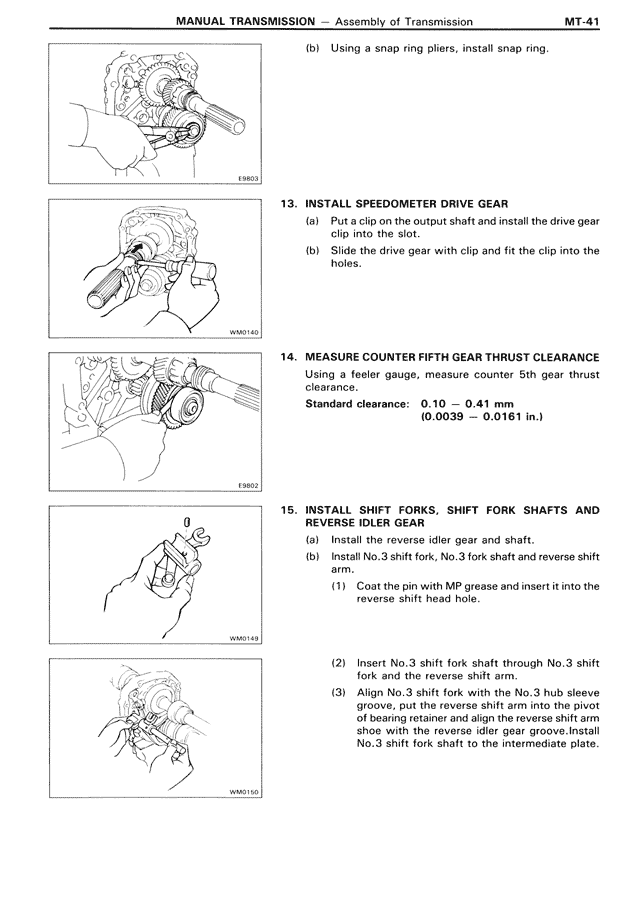

(b) Using a snap ring pliers, install snap ring. 13. INSTALL SPEEDOMETER DRIVE GEAR (a) Install the gear on output shaft and install the drive gear clip into the slot. (b) Slide the drive gear with clip and fit the clip into the holes. 14. MEASURE COUNTER FIFTH GEAR THRUST CLEARANCE Using a feeler gauge, measure counter 5th gear thrust clearance. Standard clearance: 0.10 — 0.41 mm (0.0039 — 0.0161 in.) 15. INSTALL SHIFT FORKS, SHIFT FORK SHAFTS AND REVERSE IDLER GEAR (a) Install the reverse idler gear and shaft. (b) Install No.3 shift fork, No.3 fork shaft and reverse shift arm. (1) Coat the pin with MP grease and insert it into the reverse shift head hole. (2) Insert No.3 shift fork shaft through No.3 shift fork and the reverse shift arm. (3) Align No.3 shift fork with the No.3 hub sleeve groove, put the reverse shift arm into the pivot of bearing retainer and align the reverse shift arm shoe with the reverse idler gear groove.Install No.3 shift fork shaft to the intermediate plate.
