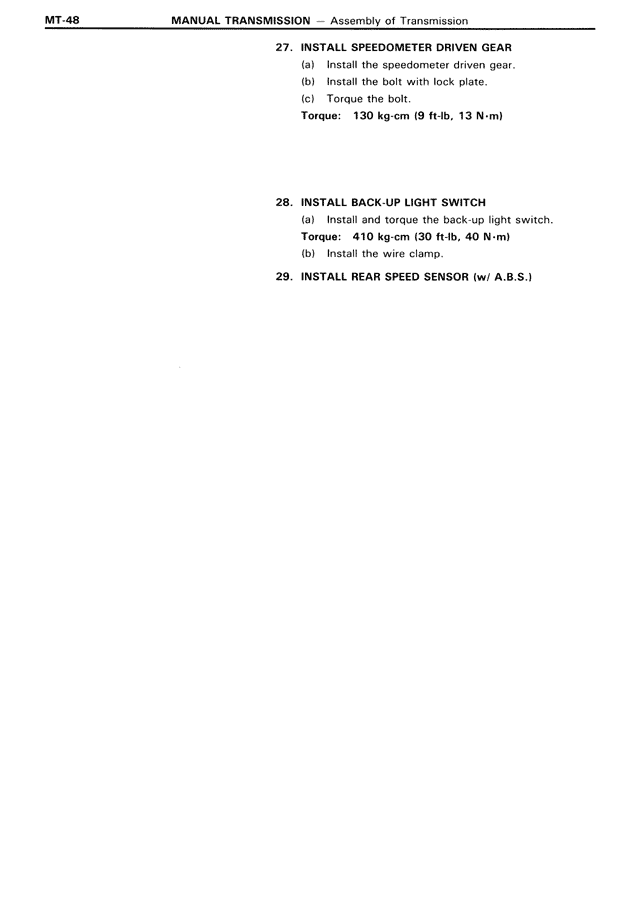

27. INSTALL SPEEDOMETER DRIVEN GEAR
(a) Install the speedometer driven gear.
(b) Install the bolt with lock plate.
(c) Torque the bolt.
Torque: 130 kg·cm (9 ft·lb, 13 N·m)
28. INSTALL BACK-UP LIGHT SWITCH
(a) Install and torque the back-up light switch.
Torque: 410 kg·cm (30 ft·lb, 40 N·m)
(b) Install the wire clamp.
29. INSTALL REAR SPEED SENSOR (w/ A.B.S.)
