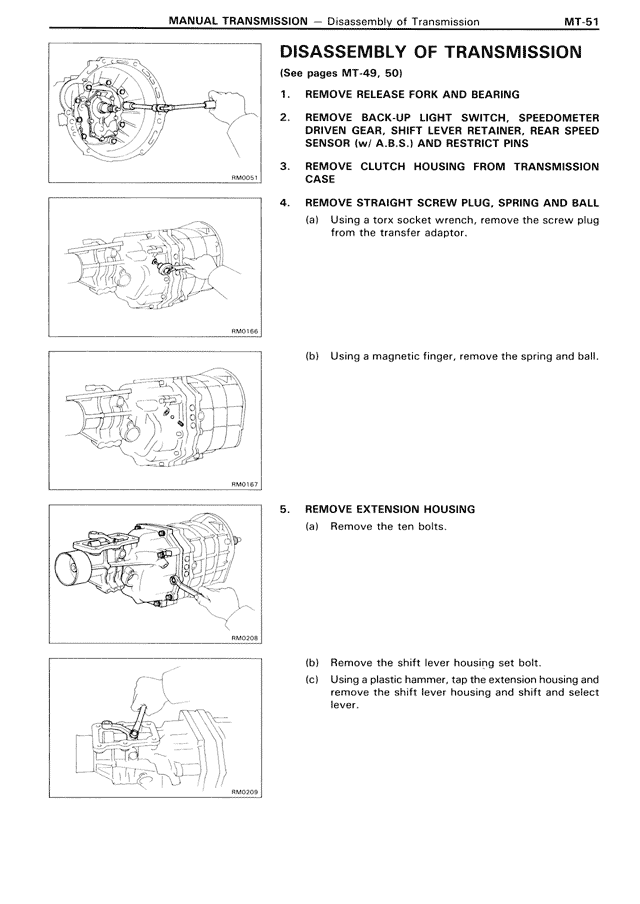

DISASSEMBLY OF TRANSMISSION (See pages MT-49, 50) 1. REMOVE RELEASE FORK AND BEARING 2. REMOVE BACK-UP LIGHT SWITCH, SPEEDOMETER DRIVEN GEAR, SHIFT LEVER RETAINER, REAR SPEED SENSOR (w/ A.B.S.) AND RESTRICT PINS 3. REMOVE CLUTCH HOUSING FROM TRANSMISSION CASE 4. REMOVE STRAIGHT SCREW PLUG, SPRING AND BALL (a) Using a torx socket wrench, remove the screw plug from the transfer adaptor. (b) Using a magnetic finger, remove the spring and ball. 5. REMOVE EXTENSION HOUSING (a) Remove the ten bolts. (b) Remove the shift lever housing set bolt. (c) Using a plastic hammer, tap the extension housing and remove the shift lever housing and shift lever and select lever. RMX051 RMX166 RMX167 RMX206 RMX203
