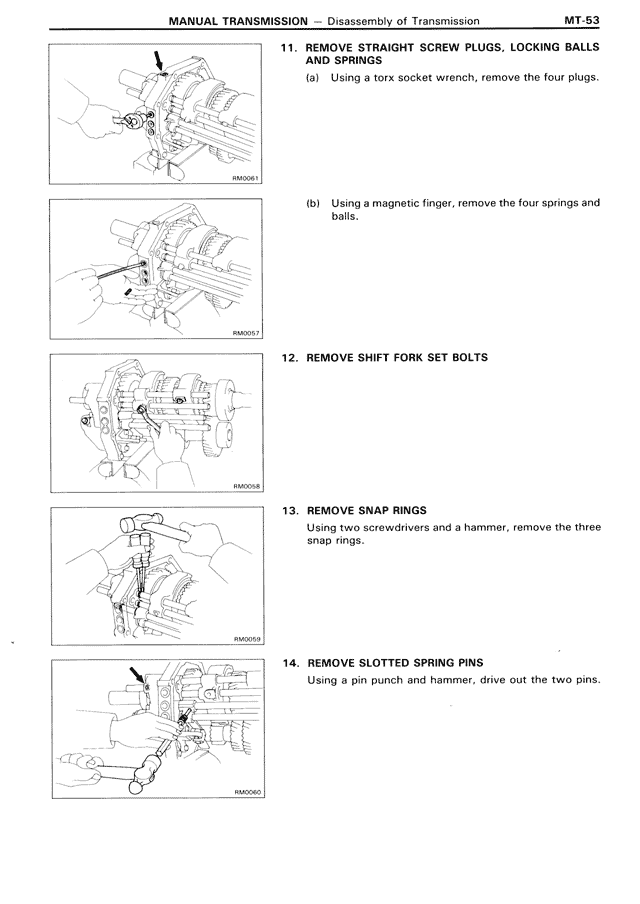

11. REMOVE STRAIGHT SCREW PLUGS, LOCKING BALLS AND SPRINGS
(a) Using a torx socket wrench, remove the four plugs.
RM0061
(b) Using a magnetic finger, remove the four springs and balls.
RM0057
12. REMOVE SHIFT FORK SET BOLTS
RM0058
13. REMOVE SNAP RINGS
Using two screwdrivers and a hammer, remove the three snap rings.
RM0059
14. REMOVE SLOTTED SPRING PINS
Using a pin punch and hammer, drive out the two pins.
RM0060
