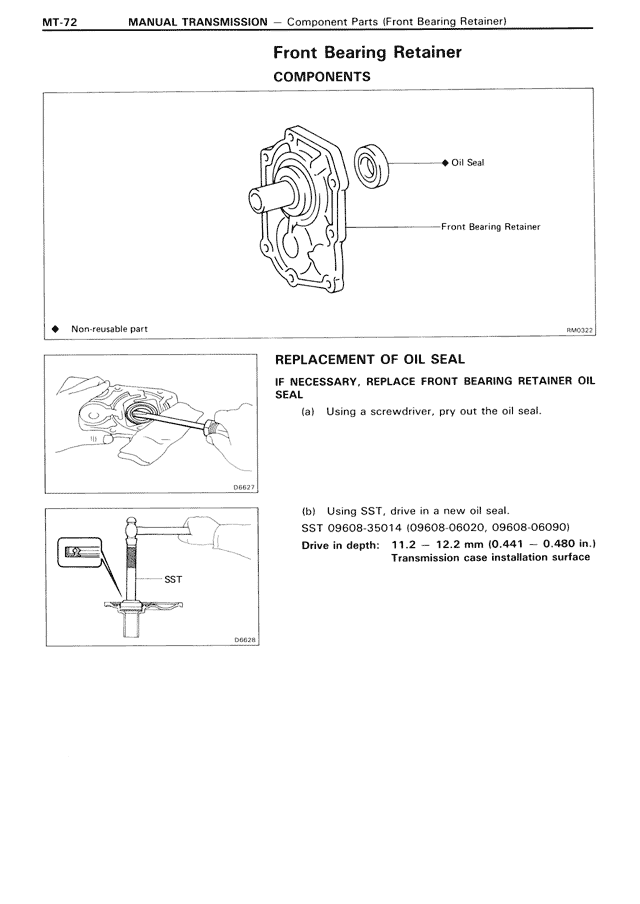

Front Bearing Retainer COMPONENTS ◆ Oil Seal Front Bearing Retainer ◆ Non-reusable part RAW0322 REPLACEMENT OF OIL SEAL IF NECESSARY, REPLACE FRONT BEARING RETAINER OIL SEAL (a) Using a screwdriver, pry out the oil seal. D8627 (b) Using SST, drive in a new oil seal. SST 09608-35014 (09608-06020, 09608-06090) Drive in depth: 11.2 — 12.2 mm (0.441 — 0.480 in.) Transmission case installation surface SST D8628
