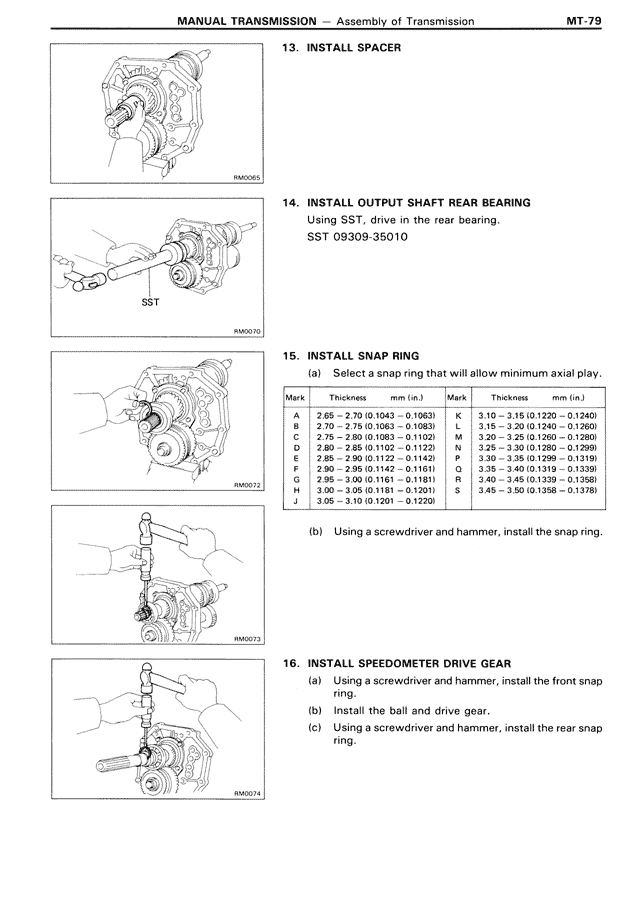

13. INSTALL SPACER 14. INSTALL OUTPUT SHAFT REAR BEARING Using SST, drive in the rear bearing. SST 09309-35010 15. INSTALL SNAP RING (a) Select a snap ring that will allow minimum axial play. Mark Thickness mm (in.) Mark Thickness mm (in.) A 2.65 - 2.70 (0.1043 - 0.1063) K 3.10 - 3.15 (0.1220 - 0.1240) B 2.70 - 2.75 (0.1063 - 0.1083) L 3.15 - 3.20 (0.1240 - 0.1260) C 2.75 - 2.80 (0.1083 - 0.1102) M 3.20 - 3.25 (0.1260 - 0.1280) D 2.80 - 2.85 (0.1102 - 0.1122) N 3.25 - 3.30 (0.1280 - 0.1299) E 2.85 - 2.90 (0.1122 - 0.1142) P 3.30 - 3.35 (0.1299 - 0.1319) F 2.90 - 2.95 (0.1142 - 0.1161) Q 3.35 - 3.40 (0.1319 - 0.1339) G 2.95 - 3.00 (0.1161 - 0.1181) R 3.40 - 3.45 (0.1339 - 0.1358) H 3.00 - 3.05 (0.1181 - 0.1201) S 3.45 - 3.50 (0.1358 - 0.1378) J 3.05 - 3.10 (0.1201 - 0.1220) (b) Using a screwdriver and hammer, install the snap ring. 16. INSTALL SPEEDOMETER DRIVE GEAR (a) Using a screwdriver and hammer, install the front snap ring. (b) Install the ball and drive gear. (c) Using a screwdriver and hammer, install the rear snap ring.
