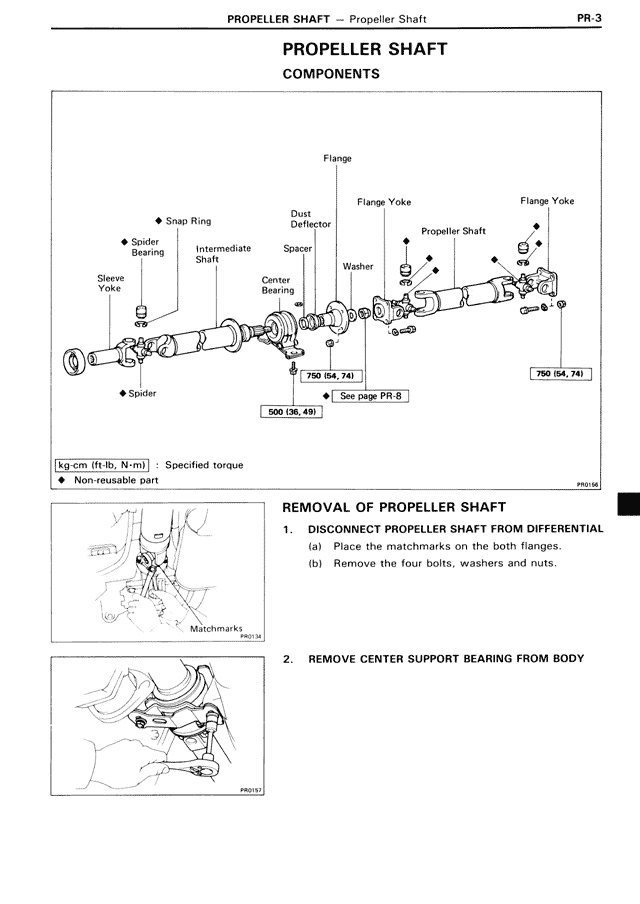

PROPELLER SHAFT COMPONENTS Flange Flange Yoke Flange Yoke Snap Ring Dust Deflector Propeller Shaft Spider Bearing Intermediate Spacer Shaft Washer Center Sleeve Bearing Yoke Spider 750 [54, 74] 750 [54, 74] See page PR-8 500 [36, 43] kg·cm [ft·lbf, N·m] : Specified torque ◆ Non-reusable part REMOVAL OF PROPELLER SHAFT 1. DISCONNECT PROPELLER SHAFT FROM DIFFERENTIAL (a) Place the matchmarks on the both flanges. (b) Remove the four bolts, washers and nuts. Matchmarks 2. REMOVE CENTER SUPPORT BEARING FROM BODY
