PROPELLER SHAFT — Propeller Shaft

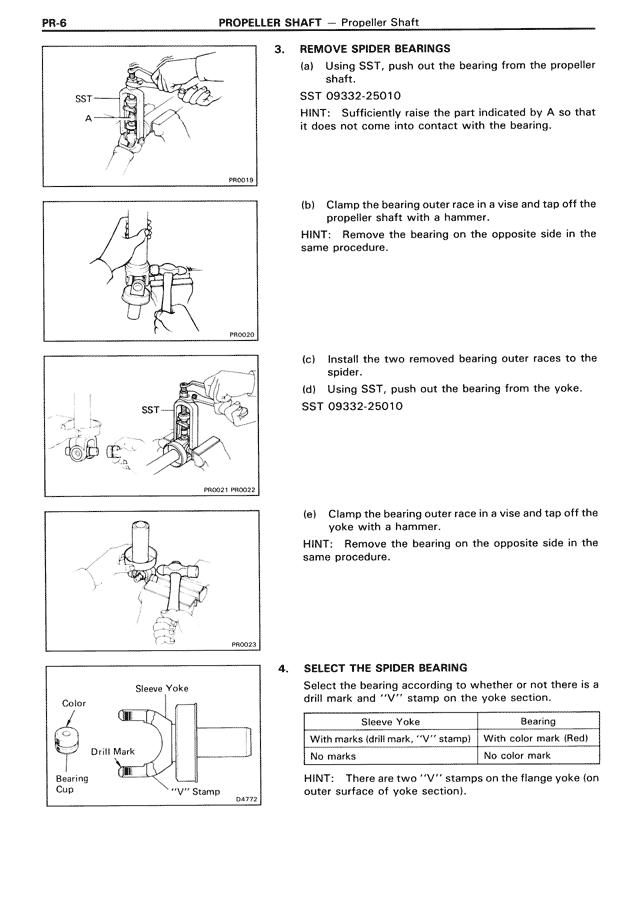

3. REMOVE SPIDER BEARINGS
(a) Using SST, push out the bearing from the propeller shaft.
SST 09332-25010
HINT: Sufficiently raise the part indicated by A so that it does not come into contact with the bearing.
(b) Clamp the bearing outer race in a vise and tap off the propeller shaft with a hammer.
HINT: Remove the bearing on the opposite side in the same procedure.
(c) Install the two removed bearing outer races to the spider.
(d) Using SST, push out the bearing from the yoke.
SST 09332-25010
(e) Clamp the bearing outer race in a vise and tap off the yoke with a hammer.
HINT: Remove the bearing on the opposite side in the same procedure.
4. SELECT THE SPIDER BEARING
Select the bearing according to whether or not there is a drill mark and "V" stamp on the yoke section.
Sleeve Yoke
With marks (drill mark, "V" stamp) | With color mark (Red)
No marks | No color mark
HINT: There are two "V" stamps on the flange yoke (on outer surface of yoke section).
Sleeve Yoke
Color
Drill Mark
Bearing Cup
"V" Stamp
D4372
