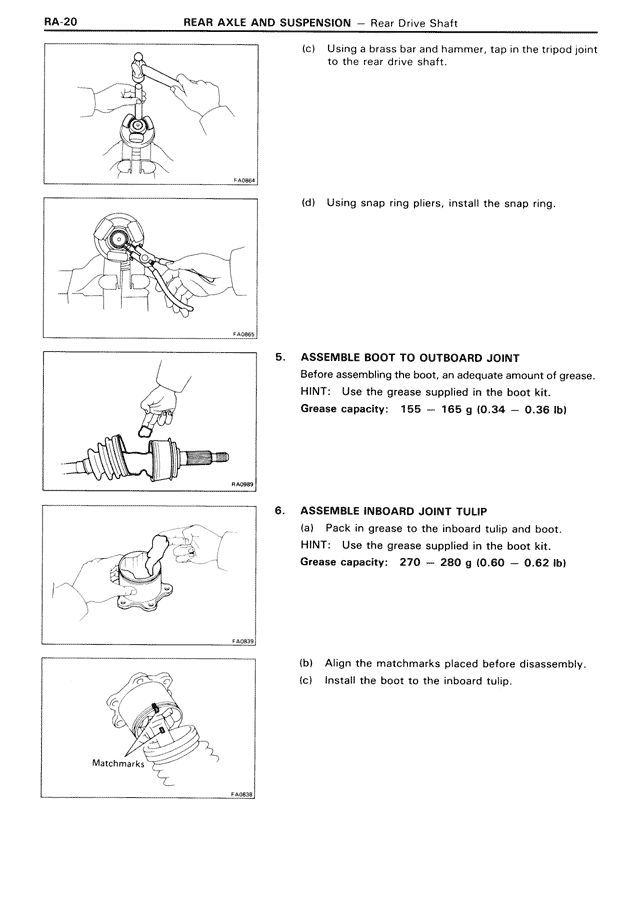

RA-20 REAR AXLE AND SUSPENSION — Rear Drive Shaft
(c) Using a brass bar and hammer, tap in the tripod joint to the rear drive shaft.
(d) Using snap ring pliers, install the snap ring.
5. ASSEMBLE BOOT TO OUTBOARD JOINT
Before assembling the boot, an adequate amount of grease.
HINT: Use the grease supplied in the boot kit.
Grease capacity: 155 — 165 g (0.34 — 0.36 lb)
6. ASSEMBLE INBOARD JOINT TULIP
(a) Pack in grease to the tulip and boot.
HINT: Use the grease supplied in the boot kit.
Grease capacity: 270 — 280 g (0.60 — 0.62 lb)
(b) Align the matchmarks placed before disassembly.
(c) Install the boot to the inboard tulip.
