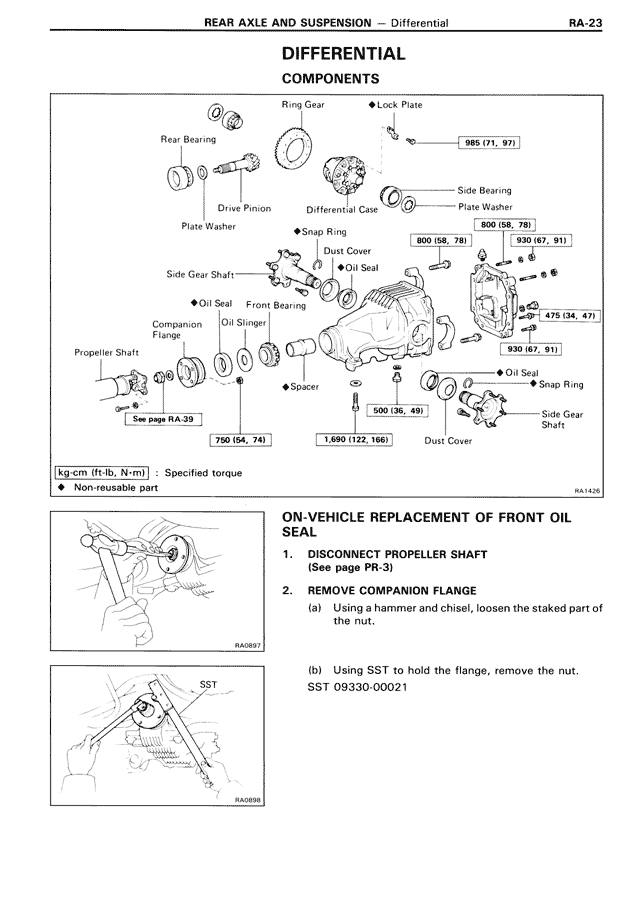

DIFFERENTIAL
COMPONENTS
Ring Gear
◆Lock Plate
Rear Bearing
985 [71, 97]
Drive Pinion
Differential Case
Side Bearing
Plate Washer
Plate Washer
800 [58, 78]
◆Snap Ring
930 [67, 91]
Dust Cover
◆Oil Seal
Side Gear Shaft
475 [34, 47]
◆Oil Seal
Front Oil Bearing
930 [67, 91]
Companion
Oil Slinger
Flange
◆Oil Seal
Propeller Shaft
◆Snap Ring
◆Spacer
500 [36, 49]
Side Gear
See page RA-39
Shaft
750 [54, 74]
1,690 [122, 166]
Dust Cover
kg·cm [ft·lb, N·m]: Specified torque
◆ Non-reusable part
RA1426
ON-VEHICLE REPLACEMENT OF FRONT OIL SEAL
1. DISCONNECT PROPELLER SHAFT
(See page PR-3)
2. REMOVE COMPANION FLANGE
(a) Using a hammer and chisel, loosen the staked part of
the nut.
RA0897
(b) Using SST to hold the flange, remove the nut.
SST 09330-00021
SST
RA0898
