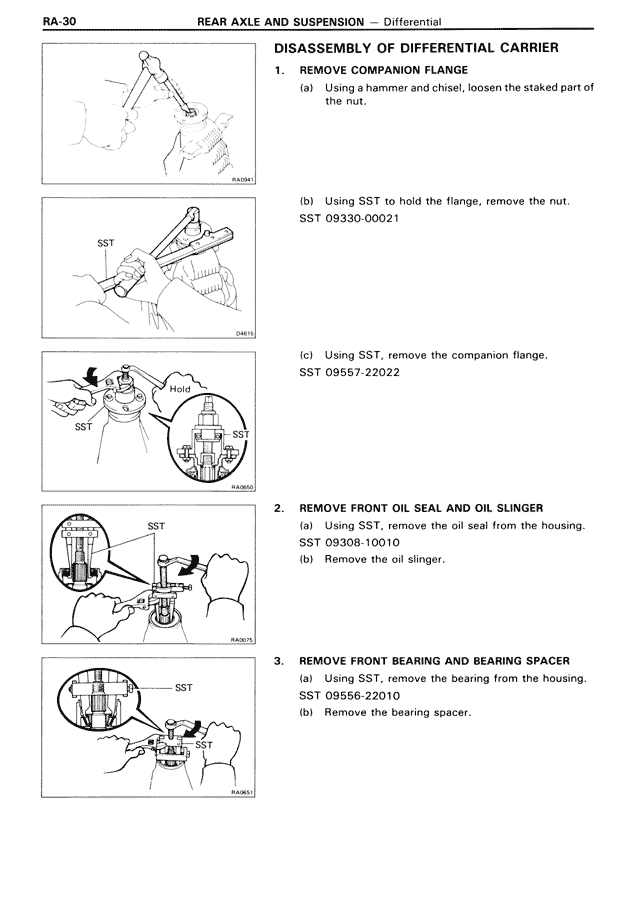

DISASSEMBLY OF DIFFERENTIAL CARRIER
1. REMOVE COMPANION FLANGE
(a) Using a hammer and chisel, loosen the staked part of the nut.
(b) Using SST to hold the flange, remove the nut.
SST 09330-00021
(c) Using SST, remove the companion flange.
SST 09557-22022
2. REMOVE FRONT OIL SEAL AND OIL SLINGER
(a) Using SST, remove the oil seal from the housing.
SST 09308-10010
(b) Remove the oil slinger.
3. REMOVE FRONT BEARING AND BEARING SPACER
(a) Using SST, remove the bearing from the housing.
SST 09556-22010
(b) Remove the bearing spacer.
