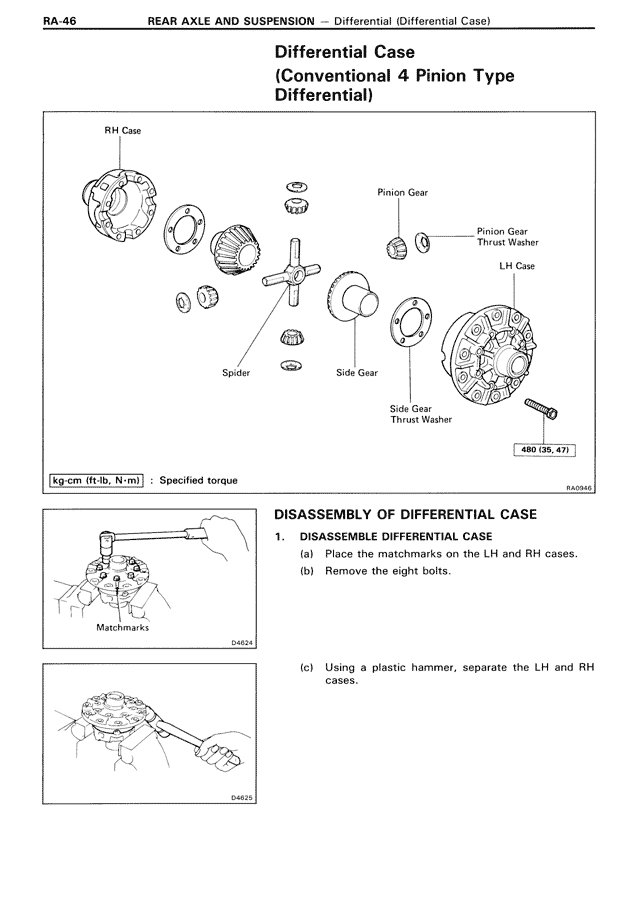

RA-46 REAR AXLE AND SUSPENSION — Differential (Differential Case)
Differential Case
(Conventional 4 Pinion Type
Differential)
RH Case
Pinion Gear
Pinion Gear
Thrust Washer
LH Case
Spider
Side Gear
Side Gear
Thrust Washer
48D (35, 47)
kg·cm (ft·lb, N·m) : Specified torque
RA0584
DISASSEMBLY OF DIFFERENTIAL CASE
1. DISASSEMBLE DIFFERENTIAL CASE
(a) Place the matchmarks on the LH and RH cases.
(b) Remove the eight bolts.
Matchmarks
D463-4
(c) Using a plastic hammer, separate the LH and RH
cases.
D463-5
