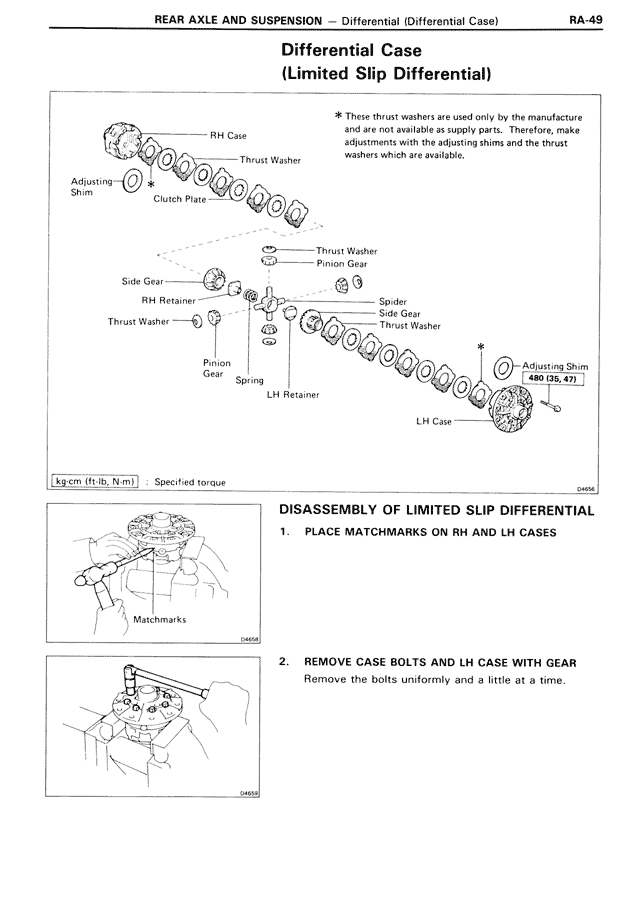

Differential Case (Limited Slip Differential) * These thrust washers are used only by the manufacture and are not available as supply parts. Therefore, make adjustments with the adjusting shims and the thrust washers which are available. RH Case Thrust Washer Adjusting Shim Clutch Plate Thrust Washer Pinion Gear Side Gear RH Retainer Spider Side Gear Thrust Washer Thrust Washer Pinion Gear Spring Adjusting Shim JBD [35, 47] LH Retainer LH Case kg·cm (ft·lb, N·m) : Specified torque DM456 DISASSEMBLY OF LIMITED SLIP DIFFERENTIAL 1. PLACE MATCHMARKS ON RH AND LH CASES Matchmarks DM454 2. REMOVE CASE BOLTS AND LH CASE WITH GEAR Remove the bolts uniformly and a little at a time. DM453
