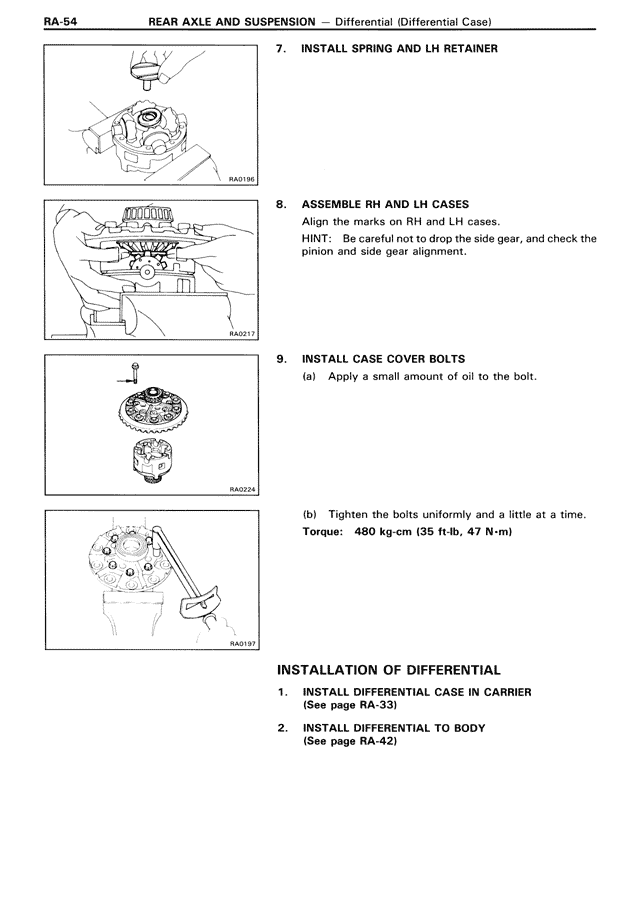

RA-54 REAR AXLE AND SUSPENSION — Differential (Differential Case)
7. INSTALL SPRING AND LH RETAINER
8. ASSEMBLE RH AND LH CASES
Align the marks on RH and LH cases.
HINT: Be careful not to drop the side gear, and check the
pinion and side gear alignment.
9. INSTALL CASE COVER BOLTS
(a) Apply a small amount of oil to the bolt.
(b) Tighten the bolts uniformly and a little at a time.
Torque: 480 kg-cm (35 ft-lb, 47 N-m)
INSTALLATION OF DIFFERENTIAL
1. INSTALL DIFFERENTIAL CASE IN CARRIER
(See page RA-33)
2. INSTALL DIFFERENTIAL TO BODY
(See page RA-42)
