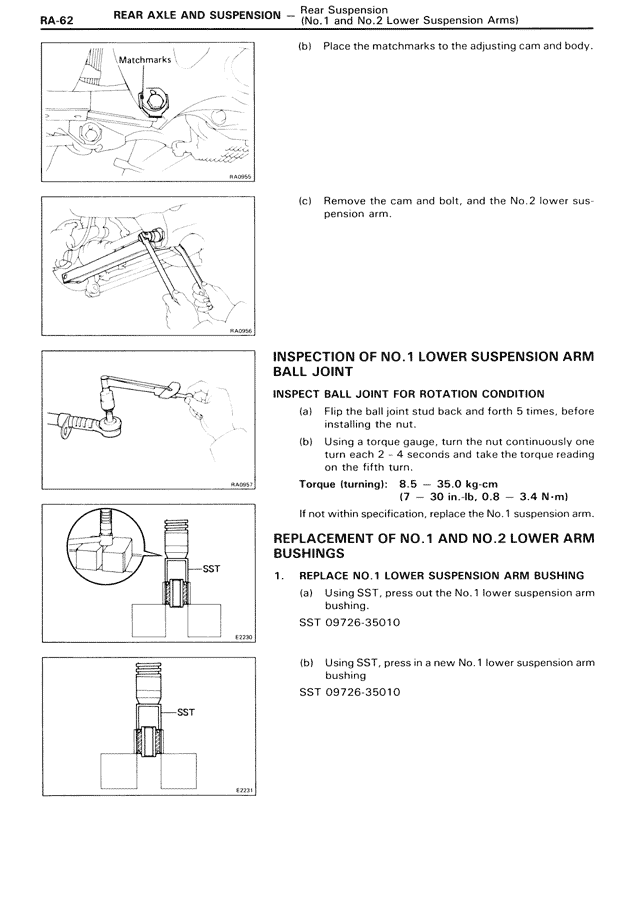

RA-62
REAR AXLE AND SUSPENSION — Rear Suspension
(No.1 and No.2 Lower Suspension Arms)
(b) Place the matchmarks to the adjusting cam and body.
(c) Remove the cam and bolt, and the No.2 lower suspension arm.
INSPECTION OF NO.1 LOWER SUSPENSION ARM BALL JOINT
INSPECT BALL JOINT FOR ROTATION CONDITION
(a) Flip the ball joint stud back and forth 5 times, before installing the nut.
(b) Using a torque gauge, turn the nut continuously one turn each 2 - 4 seconds and take the torque reading on the fifth turn.
Torque (turning): 8.5 — 35.0 kg·cm
{7 — 30 in.·lb, 0.8 — 3.4 N·m}
If not within specification, replace the No.1 suspension arm.
REPLACEMENT OF NO.1 AND NO.2 LOWER ARM BUSHINGS
1. REPLACE NO.1 LOWER SUSPENSION ARM BUSHING
(a) Using SST, press out the No.1 lower suspension arm bushing.
SST 09726-35010
(b) Using SST, press in a new No.1 lower suspension arm bushing
SST 09726-35010
