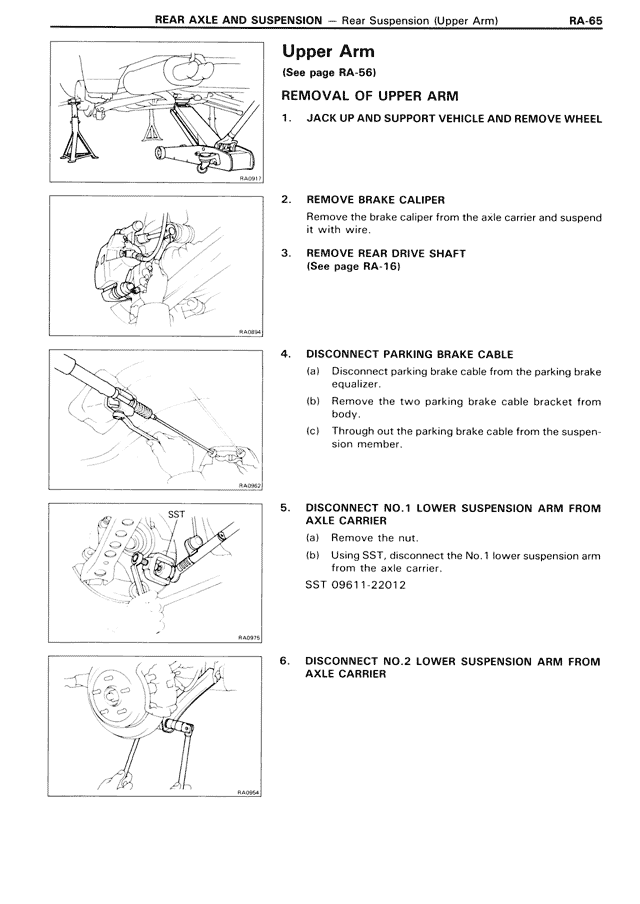

REAR AXLE AND SUSPENSION — Rear Suspension (Upper Arm) RA-65 Upper Arm (See page RA-66) REMOVAL OF UPPER ARM 1. JACK UP AND SUPPORT VEHICLE AND REMOVE WHEEL 2. REMOVE BRAKE CALIPER Remove the brake caliper from the axle carrier and suspend it with wire. 3. REMOVE REAR DRIVE SHAFT (See page RA-16) 4. DISCONNECT PARKING BRAKE CABLE (a) Disconnect parking brake cable from the parking brake equalizer. (b) Remove the two parking brake cable bracket from body. (c) Through out the parking brake cable from the suspension member. 5. DISCONNECT NO.1 LOWER SUSPENSION ARM FROM AXLE CARRIER (a) Remove the nut. (b) Using SST, disconnect the No.1 lower suspension arm from the axle carrier. SST 09611-22012 6. DISCONNECT NO.2 LOWER SUSPENSION ARM FROM AXLE CARRIER
