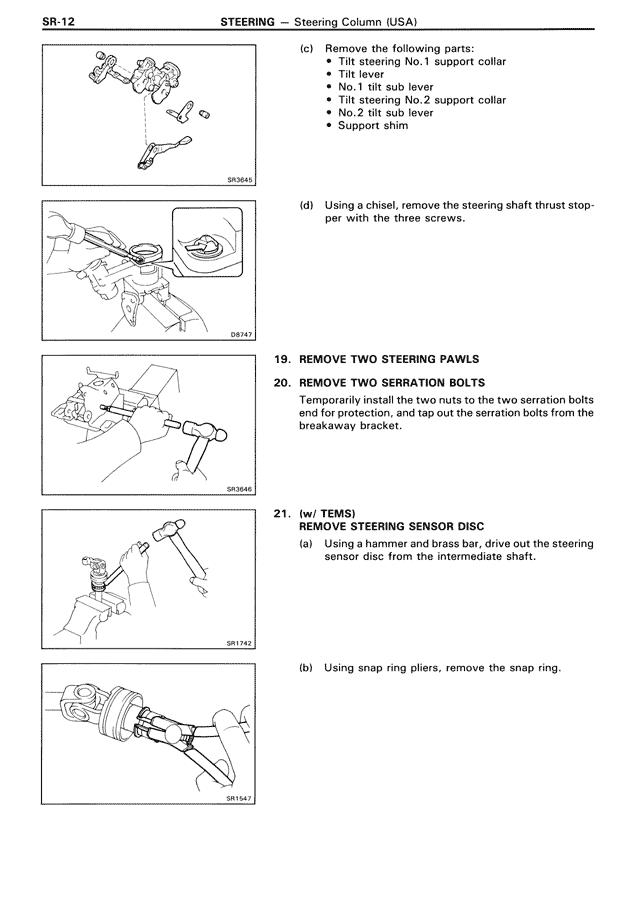

SR-12 STEERING — Steering Column (USA) (c) Remove the following parts: • Tilt steering No.1 support collar • Tilt lever • No.1 tilt sub lever • Tilt steering No.2 support collar • No.2 tilt sub lever • Support shim (d) Using a chisel, remove the steering shaft thrust stopper with the three screws. 19. REMOVE TWO STEERING PAWLS 20. REMOVE TWO SERRATION BOLTS Temporarily install the two nuts to the two serration bolts end for protection, and tap out the serration bolts from the breakaway bracket. 21. (w/ TEMS) REMOVE STEERING SENSOR DISC (a) Using a hammer and brass bar, drive out the steering sensor disc from the intermediate shaft. (b) Using snap ring pliers, remove the snap ring.
