STEERING — Steering Column (USA)
3. (w/ TEMS)

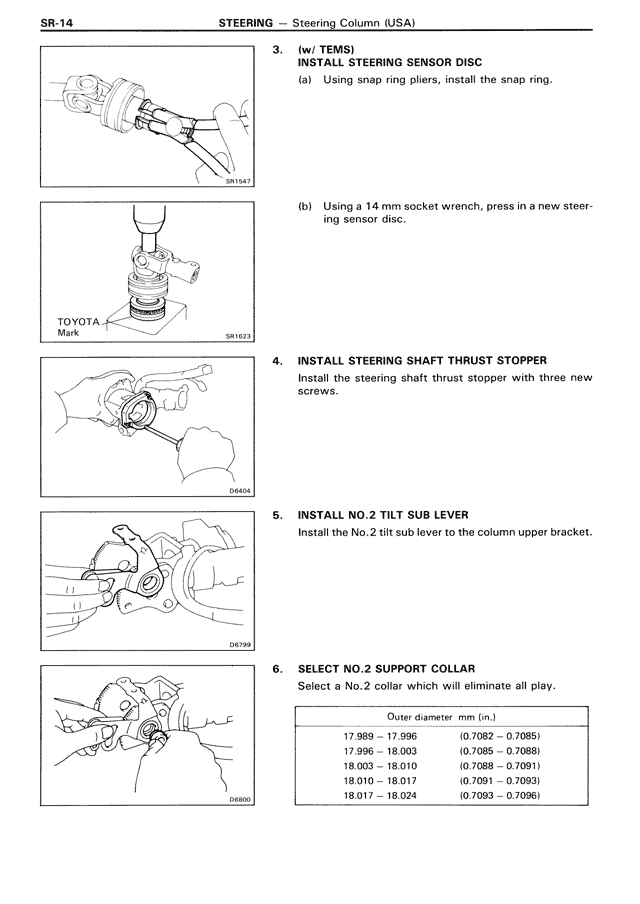

INSTALL STEERING SENSOR DISC
(a) Using snap ring pliers, install the snap ring.
(b) Using a 14 mm socket wrench, press in a new steering sensor disc.
TOYOTA Mark
4. INSTALL STEERING SHAFT THRUST STOPPER
Install the steering shaft thrust stopper with three new screws.
5. INSTALL NO.2 TILT SUB LEVER
Install the No.2 tilt sub lever to the column upper bracket.
6. SELECT NO.2 SUPPORT COLLAR
Select a No.2 collar which will eliminate all play.
Outer diameter mm (in.)
17.989 - 17.996 (0.7082 - 0.7085)
17.996 - 18.003 (0.7085 - 0.7088)
18.003 - 18.010 (0.7088 - 0.7091)
18.010 - 18.017 (0.7091 - 0.7093)
18.017 - 18.024 (0.7093 - 0.7096)
