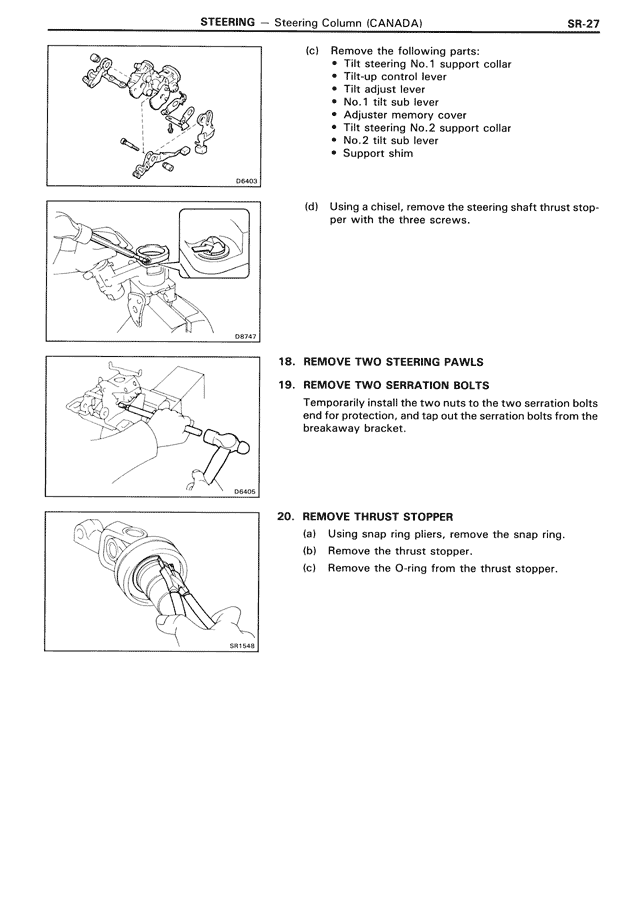

STEERING — Steering Column (CANADA)
SR-27
(c) Remove the following parts:
• Tilt steering No.1 support collar
• Tilt-up control lever
• Tilt adjust lever
• No.1 tilt sub lever
• Adjuster memory cover
• Tilt steering No.2 support collar
• No.2 tilt sub lever
• Support shim
(d) Using a chisel, remove the steering shaft thrust stopper with the three screws.
18. REMOVE TWO STEERING PAWLS
19. REMOVE TWO SERRATION BOLTS
Temporarily install the two nuts to the two serration bolts end for protection, and tap out the serration bolts from the breakaway bracket.
20. REMOVE THRUST STOPPER
(a) Using snap ring pliers, remove the snap ring.
(b) Remove the thrust stopper.
(c) Remove the O-ring from the thrust stopper.
