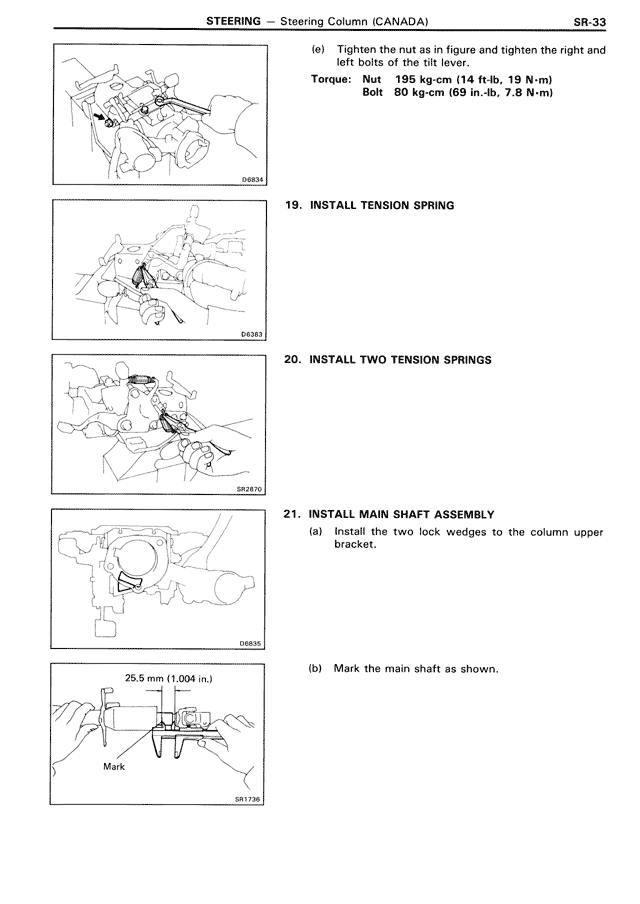

(e) Tighten the nut as in figure and tighten the right and left bolts of the tilt lever.
Torque: Nut 195 kg-cm (14 ft-lb, 19 N·m)
Bolt 80 kg-cm (69 in.-lb, 7.8 N·m)
19. INSTALL TENSION SPRING
20. INSTALL TWO TENSION SPRINGS
21. INSTALL MAIN SHAFT ASSEMBLY
(a) Install the two lock wedges to the column upper bracket.
(b) Mark the main shaft as shown.
25.5 mm (1.004 in.)
Mark
