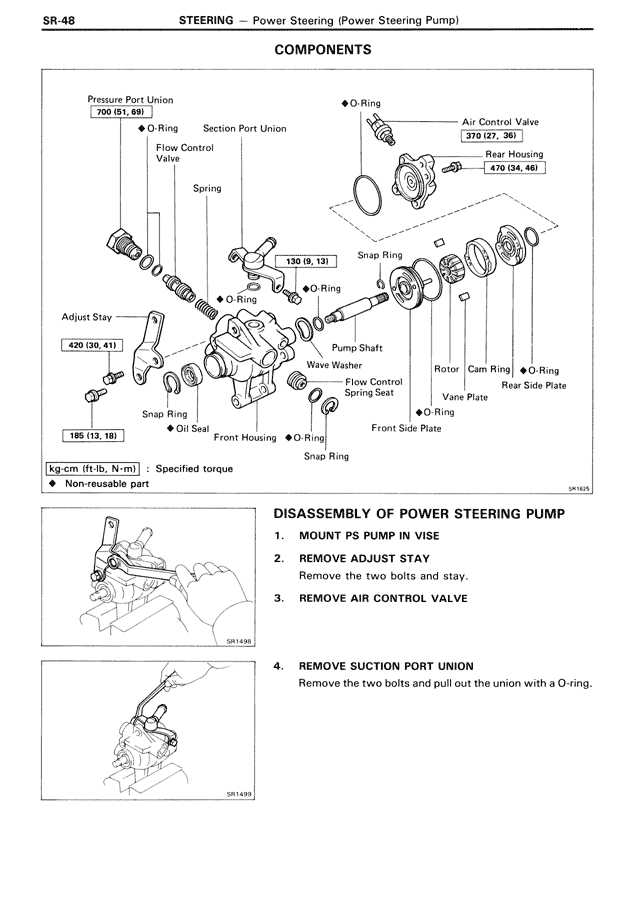

COMPONENTS Pressure Port Union 700 (51, 68) ◆O-Ring Section Port Union Flow Control Valve Spring Adjust Stay 420 (30, 41) ◆O-Ring ◆O-Ring Snap Ring 185 (13, 18) ◆Oil Seal Front Housing Snap Ring ◆O-Ring ◆O-Ring Air Control Valve 370 (27, 38) Rear Housing 470 (34, 40) Snap Ring 130 (9, 13) Pump Shaft Wave Washer Flow Control Spring Seat Vane Plate Front Side Plate Rotor Cam Ring ◆O-Ring Rear Side Plate ◆O-Ring kg·cm (ft·lb, N·m) : Specified torque ◆ Non-reusable part DISASSEMBLY OF POWER STEERING PUMP 1. MOUNT PS PUMP IN VISE 2. REMOVE ADJUST STAY Remove the two bolts and stay. 3. REMOVE AIR CONTROL VALVE 4. REMOVE SUCTION PORT UNION Remove the two bolts and pull out the union with a O-ring.
