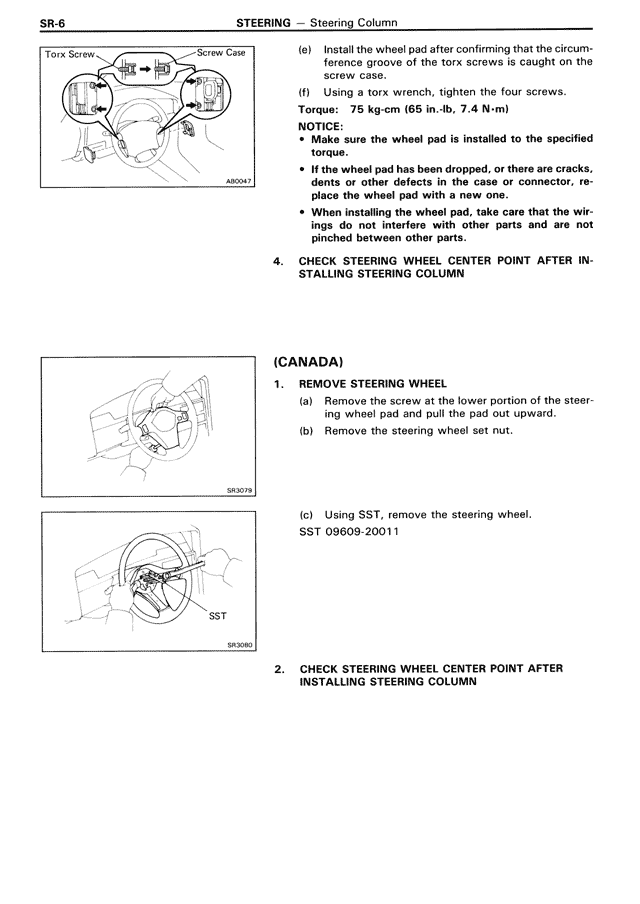

SR-6 STEERING — Steering Column Torx Screw Screw Case A90047 (e) Install the wheel pad after confirming that the circumference groove of the torx screws is caught on the screw case. (f) Using a torx wrench, tighten the four screws. Torque: 75 kg·cm (65 in.·lb, 7.4 N·m) NOTICE: • Make sure the wheel pad is installed to the specified torque. • If the wheel pad has been dropped, or there are cracks, dents or other defects in the case or connector, replace the wheel pad with a new one. • When installing the wheel pad, take care that the wirings do not interfere with other parts and are not pinched between other parts. 4. CHECK STEERING WHEEL CENTER POINT AFTER INSTALLING STEERING COLUMN (CANADA) 1. REMOVE STEERING WHEEL (a) Remove the screw at the lower portion of the steering wheel pad and pull the pad out upward. (b) Remove the steering wheel set nut. SR-079 (c) Using SST, remove the steering wheel. SST 09609-20011 SST SR-080 2. CHECK STEERING WHEEL CENTER POINT AFTER INSTALLING STEERING COLUMN
