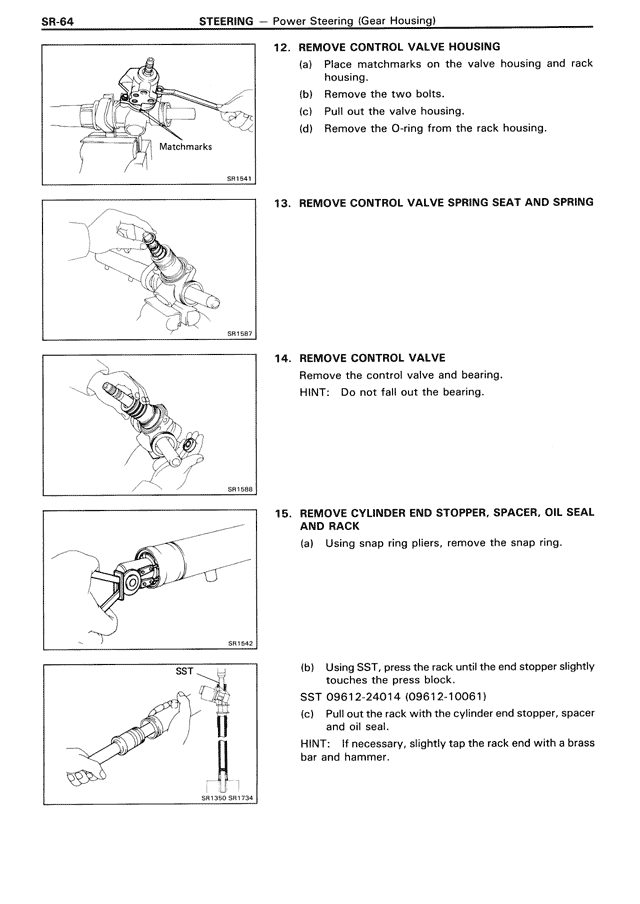

SR-64 STEERING — Power Steering (Gear Housing) 12. REMOVE CONTROL VALVE HOUSING (a) Place matchmarks on the valve housing and rack housing. (b) Remove the two bolts. (c) Pull out the valve housing. (d) Remove the O-ring from the rack housing. Matchmarks SR1541 13. REMOVE CONTROL VALVE SPRING SEAT AND SPRING SR1567 14. REMOVE CONTROL VALVE Remove the control valve and bearing. HINT: Do not fall out the bearing. SR1568 15. REMOVE CYLINDER END STOPPER, SPACER, OIL SEAL AND RACK (a) Using snap ring pliers, remove the snap ring. SR1543 (b) Using SST, press the rack until the end stopper slightly touches the press block. SST 09612-24014 (09612-10061) (c) Pull out the rack with the cylinder end stopper, spacer and oil seal. HINT: If necessary, slightly tap the rack end with a brass bar and hammer. SST SR1320 SR1734
