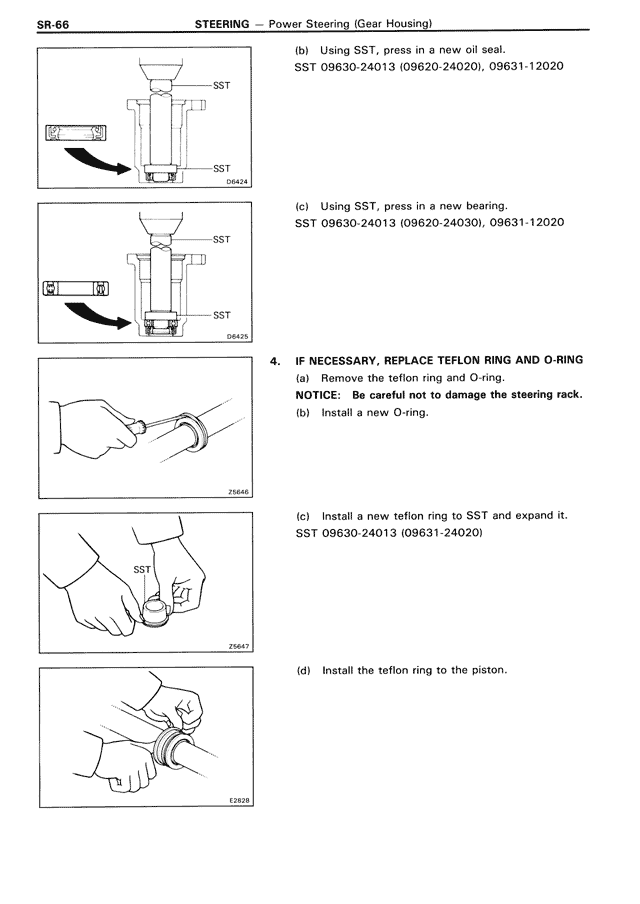

SR-66
STEERING — Power Steering (Gear Housing)
(b) Using SST, press in a new oil seal.
SST 09630-24013 (09620-24020), 09631-12020
(c) Using SST, press in a new bearing.
SST 09630-24013 (09620-24030), 09631-12020
4. IF NECESSARY, REPLACE TEFLON RING AND O-RING
(a) Remove the teflon ring and O-ring.
NOTICE: Be careful not to damage the steering rack.
(b) Install a new O-ring.
(c) Install a new teflon ring to SST and expand it.
SST 09630-24013 (09631-24020)
(d) Install the teflon ring to the piston.
