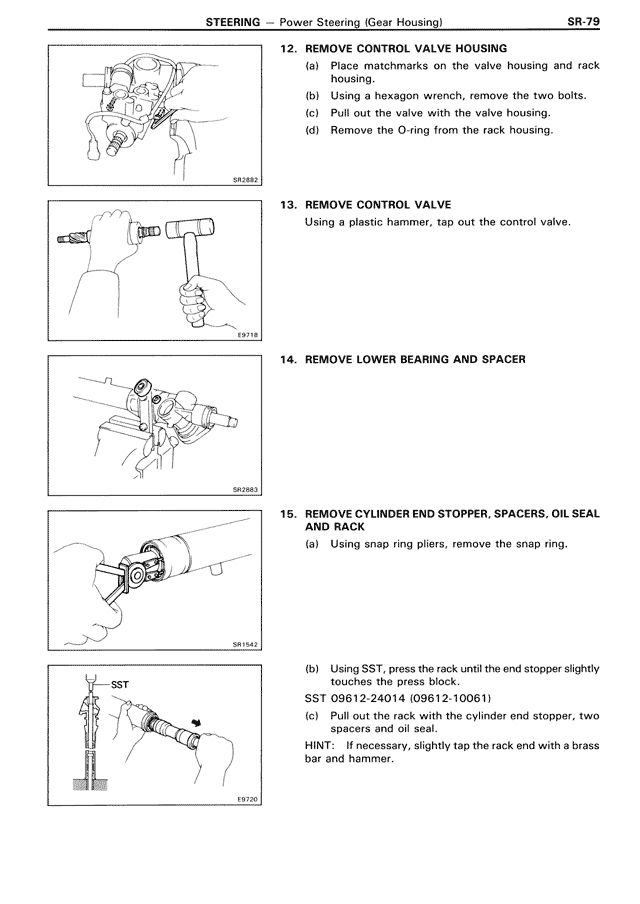

12. REMOVE CONTROL VALVE HOUSING
(a) Place matchmarks on the valve housing and rack housing.
(b) Using a hexagon wrench, remove the two bolts.
(c) Pull out the valve with the valve housing.
(d) Remove the O ring from the rack housing.
13. REMOVE CONTROL VALVE
Using a plastic hammer, tap out the control valve.
14. REMOVE LOWER BEARING AND SPACER
15. REMOVE CYLINDER END STOPPER, SPACERS, OIL SEAL AND RACK
(a) Using snap ring pliers, remove the snap ring.
(b) Using SST, press the rack until the end stopper slightly touches the press block.
SST 09612-24014 (09612-10061)
(c) Pull out the rack with the cylinder end stopper, two spacers and oil seal.
HINT: If necessary, slightly tap the rack and with a brass bar and hammer.
