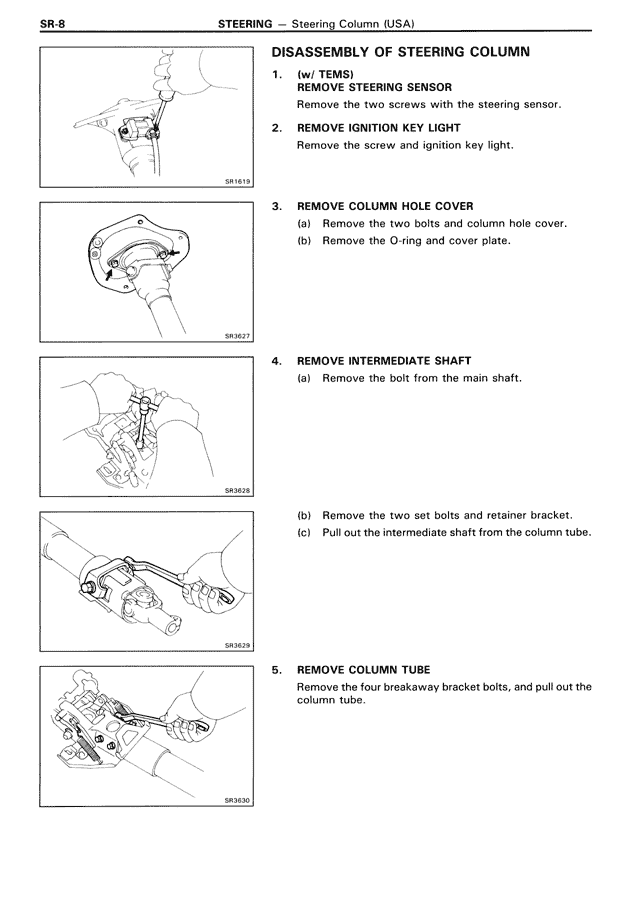

SR-8 STEERING — Steering Column (USA) DISASSEMBLY OF STEERING COLUMN 1. (w/ TEMS) REMOVE STEERING SENSOR Remove the two screws with the steering sensor. 2. REMOVE IGNITION KEY LIGHT Remove the screw and ignition key light. 3. REMOVE COLUMN HOLE COVER (a) Remove the two bolts and column hole cover. (b) Remove the O-ring and cover plate. 4. REMOVE INTERMEDIATE SHAFT (a) Remove the bolt from the main shaft. (b) Remove the two set bolts and retainer bracket. (c) Pull out the intermediate shaft from the column tube. 5. REMOVE COLUMN TUBE Remove the four breakaway bracket bolts, and pull out the column tube.
