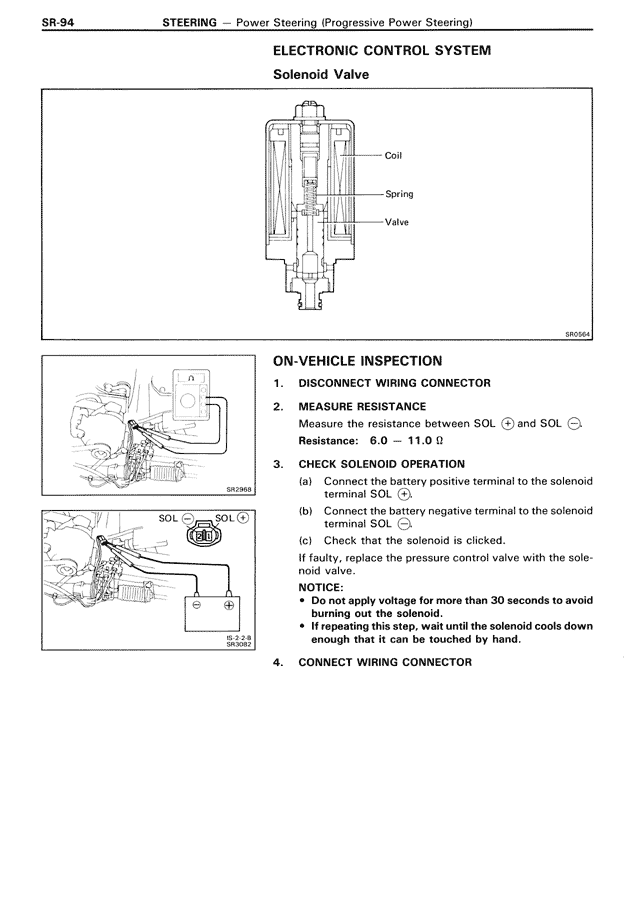

ELECTRONIC CONTROL SYSTEM Solenoid Valve [Diagram showing solenoid valve with labeled parts: Coil, Spring, Valve] ON-VEHICLE INSPECTION 1. DISCONNECT WIRING CONNECTOR 2. MEASURE RESISTANCE Measure the resistance between SOL ⊕ and SOL ⊖. Resistance: 6.0 — 11.0 Ω 3. CHECK SOLENOID OPERATION (a) Connect the battery positive terminal to the solenoid terminal SOL ⊕. (b) Connect the battery negative terminal to the solenoid terminal SOL ⊖. (c) Check that the solenoid is clicked. If faulty, replace the pressure control valve with the solenoid valve. NOTICE: • Do not apply voltage for more than 30 seconds to avoid damaging the solenoid. • If repeating this step, wait until the solenoid cools down enough that it can be touched by hand. 4. CONNECT WIRING CONNECTOR
