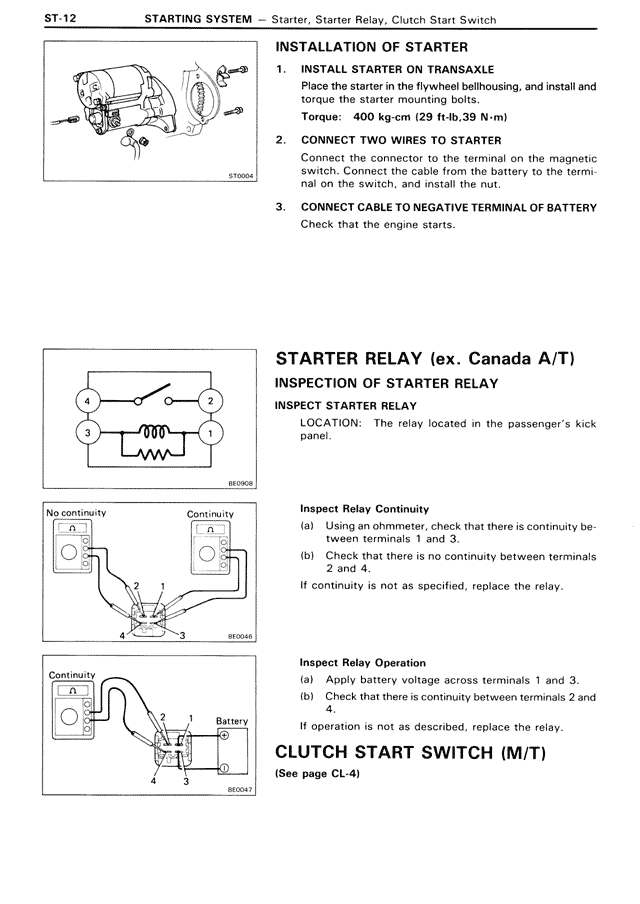

ST-12 STARTING SYSTEM — Starter, Starter Relay, Clutch Start Switch INSTALLATION OF STARTER 1. INSTALL STARTER ON TRANSAXLE Place the starter in the flywheel bellhousing, and install and torque the starter mounting bolts. Torque: 400 kg-cm (29 ft-lb, 39 N-m) 2. CONNECT TWO WIRES TO STARTER Connect the connector to the terminal on the magnetic switch. Connect the cable from the battery to the terminal on the switch, and install the nut. 3. CONNECT CABLE TO NEGATIVE TERMINAL OF BATTERY Check that the engine starts. STARTER RELAY (ex. Canada A/T) INSPECTION OF STARTER RELAY INSPECT STARTER RELAY LOCATION: The relay located in the passenger's kick panel. Inspect Relay Continuity (a) Using an ohmmeter, check that there is continuity between terminals 1 and 3. (b) Check that there is no continuity between terminals 2 and 4. If continuity is not as specified, replace the relay. Inspect Relay Operation (a) Apply battery voltage across terminals 1 and 3. (b) Check that there is continuity between terminals 2 and 4. If operation is not as described, replace the relay. CLUTCH START SWITCH (M/T) (See page CL-4)
