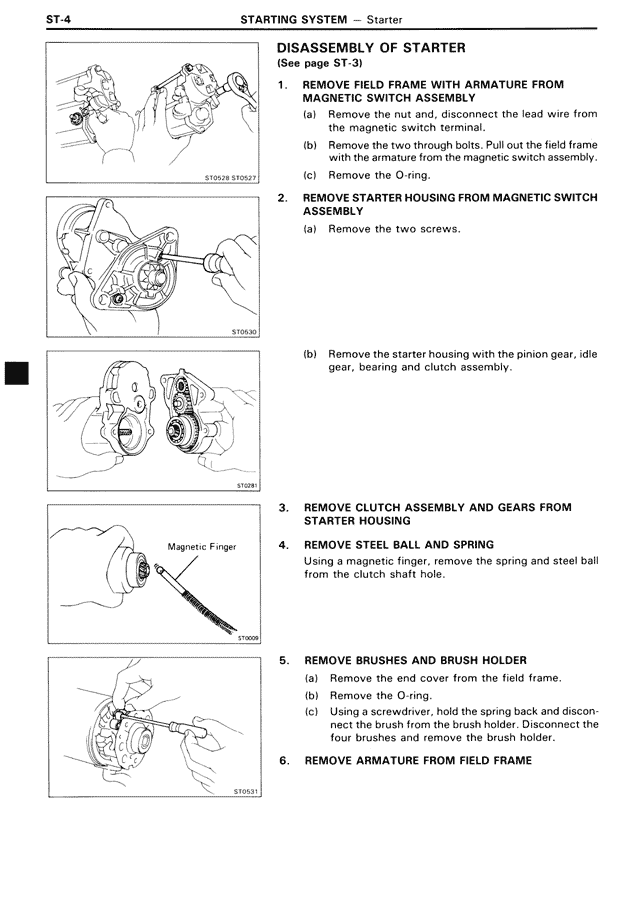

DISASSEMBLY OF STARTER
(See page ST-3)
1. REMOVE FIELD FRAME WITH ARMATURE FROM MAGNETIC SWITCH ASSEMBLY
(a) Remove the nut and, disconnect the lead wire from the magnetic switch terminal.
(b) Remove the two through bolts. Pull out the field frame with the armature from the magnetic switch assembly.
(c) Remove the O-ring.
2. REMOVE STARTER HOUSING FROM MAGNETIC SWITCH ASSEMBLY
(a) Remove the two screws.
(b) Remove the starter housing with the pinion gear, idle gear, bearing and clutch assembly.
3. REMOVE CLUTCH ASSEMBLY AND GEARS FROM STARTER HOUSING
4. REMOVE STEEL BALL AND SPRING
Using a magnetic finger, remove the spring and steel ball from the clutch shaft hole.
5. REMOVE BRUSHES AND BRUSH HOLDER
(a) Remove the end cover from the field frame.
(b) Remove the O-ring.
(c) Using a screwdriver, hold the spring back and disconnect the brush from the brush holder. Disconnect the four brushes and remove the brush holder.
6. REMOVE ARMATURE FROM FIELD FRAME
