Turbocharger System
/
p.13
← 012
TC · 013
014 →

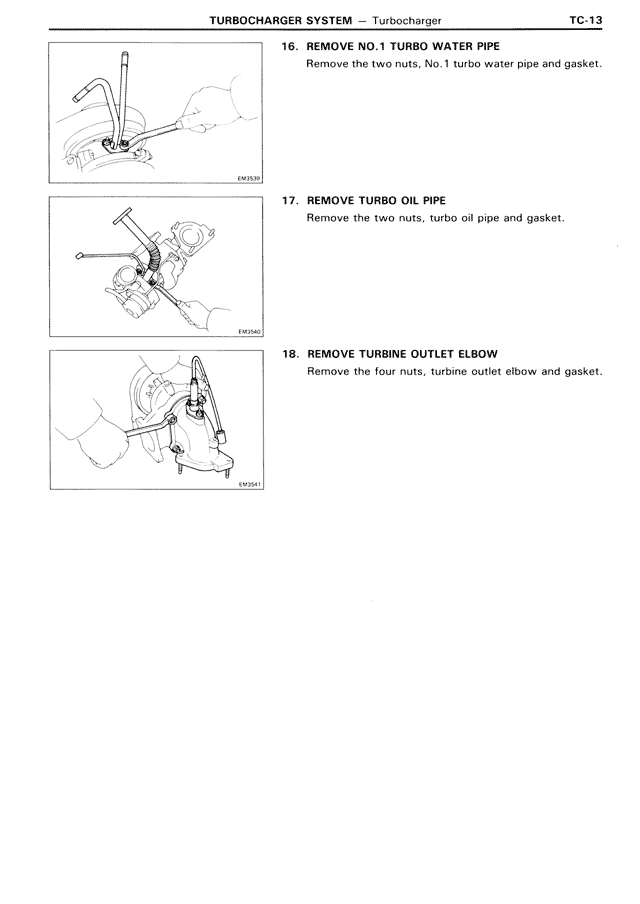

16. REMOVE NO.1 TURBO WATER PIPE Remove the two nuts, No.1 turbo water pipe and gasket. 17. REMOVE TURBO OIL PIPE Remove the two nuts, turbo oil pipe and gasket. 18. REMOVE TURBINE OUTLET ELBOW Remove the four nuts, turbine outlet elbow and gasket.
