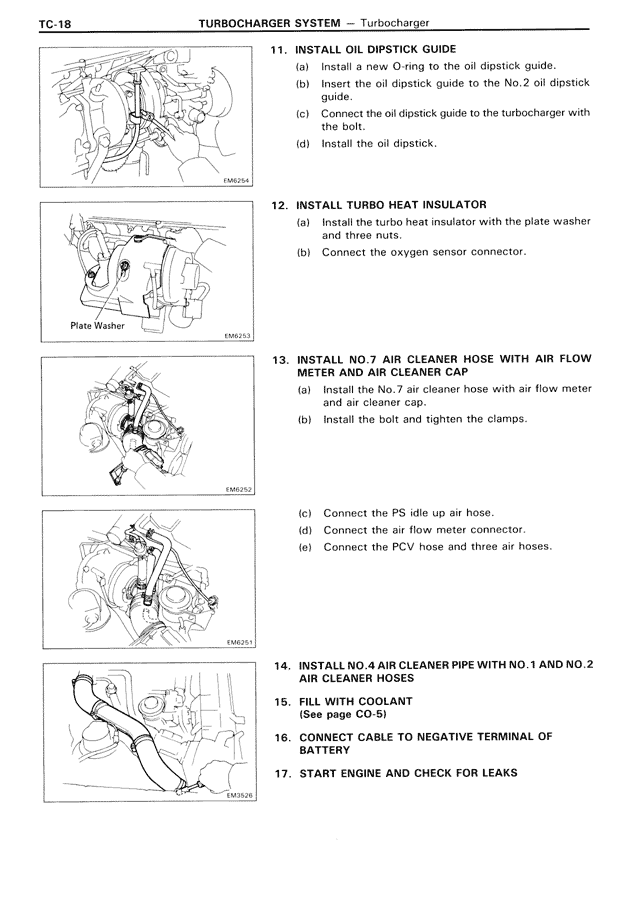

TC-18 TURBOCHARGER SYSTEM — Turbocharger 11. INSTALL OIL DIPSTICK GUIDE (a) Install a new O-ring to the oil dipstick guide. (b) Insert the oil dipstick guide to the No.2 oil dipstick guide. (c) Connect the oil dipstick guide to the turbocharger with the bolt. (d) Install the oil dipstick. 12. INSTALL TURBO HEAT INSULATOR (a) Install the turbo heat insulator with the plate washer and three nuts. (b) Connect the oxygen sensor connector. Plate Washer 13. INSTALL NO.7 AIR CLEANER HOSE WITH AIR FLOW METER AND AIR CLEANER CAP (a) Install the No.7 air cleaner hose with air flow meter and air cleaner cap. (b) Install the bolt and tighten the clamps. (c) Connect the PS idle up air hose. (d) Connect the air flow meter connector. (e) Connect the PCV hose and three air hoses. 14. INSTALL NO.4 AIR CLEANER PIPE WITH NO.1 AND NO.2 AIR CLEANER HOSES 15. FILL WITH COOLANT (See page CO-5) 16. CONNECT CABLE TO NEGATIVE TERMINAL OF BATTERY 17. START ENGINE AND CHECK FOR LEAKS
