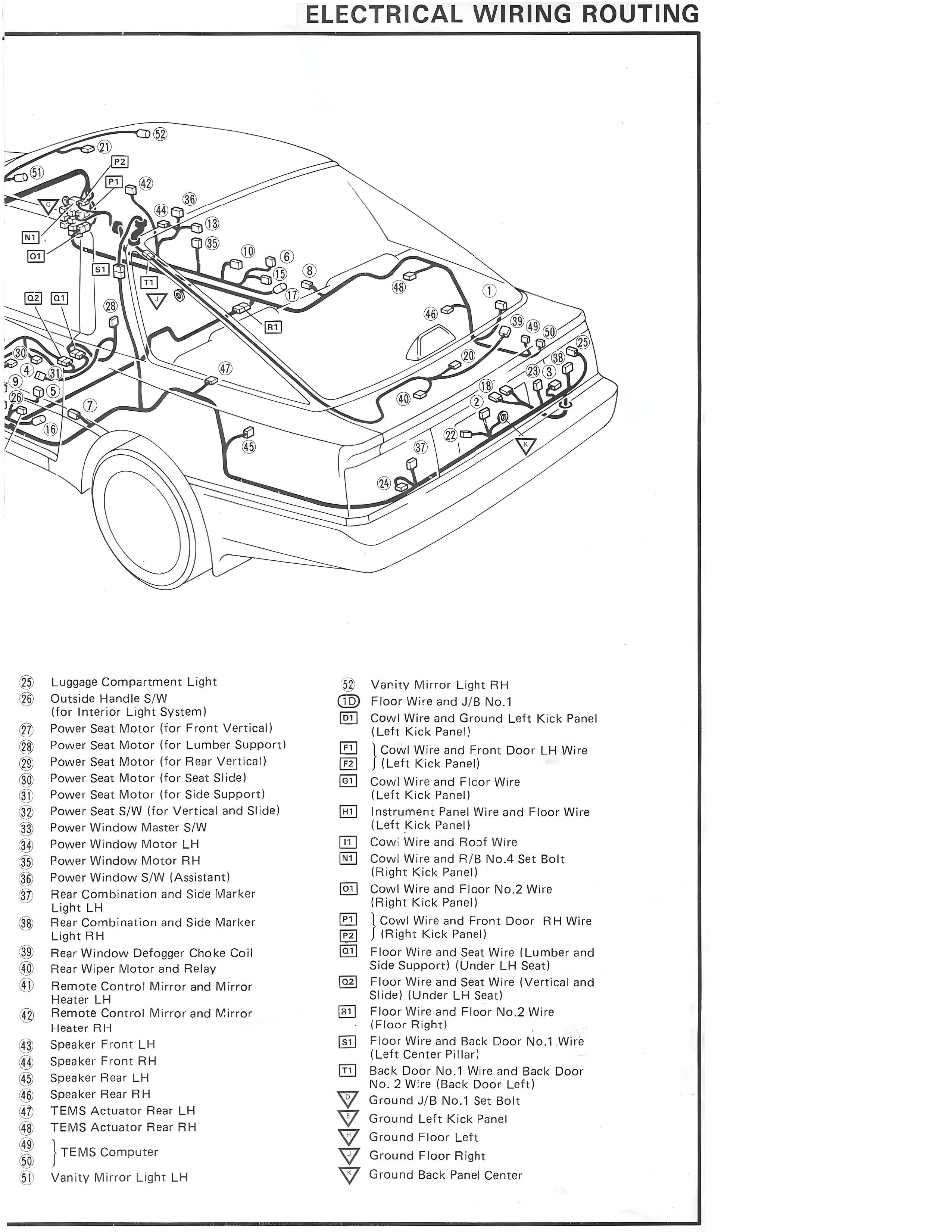

ELECTRICAL WIRING ROUTING 25 Luggage Compartment Light 26 Outside Handle S/W (for Interior Light System) 27 Power Seat Motor (for Front Vertical) 28 Power Seat Motor (for Lumber Support) 29 Power Seat Motor (for Rear Vertical) 30 Power Seat Motor (for Seat Slide) 31 Power Seat Motor (for Side Support) 32 Power Seat S/W (for Vertical and Slide) 33 Power Window Master S/W 34 Power Window Motor LH 35 Power Window Motor RH 36 Power Window S/W (Assistant) 37 Rear Combination and Side Marker Light LH 38 Rear Combination and Side Marker Light RH 39 Rear Window Defogger Choke Coil 40 Rear Wiper Motor and Relay 41 Remote Control Mirror and Mirror Heater LH 42 Remote Control Mirror and Mirror Heater RH 43 Speaker Front LH 44 Speaker Front RH 45 Speaker Rear LH 46 Speaker Rear RH 47 TEMS Actuator Rear LH 48 TEMS Actuator Rear RH 49 TEMS Computer 50 51 Vanity Mirror Light LH 52 Vanity Mirror Light RH J/D Floor Wire and J/B No.1 D1 Cowl Wire and Ground Left Kick Panel (Left Kick Panel) F1 | Cowl Wire and Front Door LH Wire (Left Kick Panel) F2 G1 Cowl Wire and Floor Wire (Left Kick Panel) H1 Instrument Panel Wire and Floor Wire (Left Kick Panel) I1 Cowl Wire and Roof Wire J1 Cowl Wire and P/B No.4 Set Bolt (Right Kick Panel) C1 Cowl Wire and Floor No.2 Wire (Right Kick Panel) P1 | Cowl Wire and Front Door RH Wire (Right Kick Panel) P2 S1 Floor Wire and Seat Wire (Lumber and Side Support) (Under LH Seat) G2 Floor Wire and Seat Wire (Vertical and Slide) (Under LH Seat) H2 Floor Wire and Floor No.2 Wire (Floor Right) B1 Floor Wire and Back Door No.1 Wire (Left Center Pillar) T1 Back Door No.1 Wire and Back Door No. 2 Wire (Back Door Left) ∇ Ground J/B No.1 Set Bolt ∇ Ground Left Kick Panel ∇ Ground Floor Left ∇ Ground Floor Right ∇ Ground Back Panel Center
