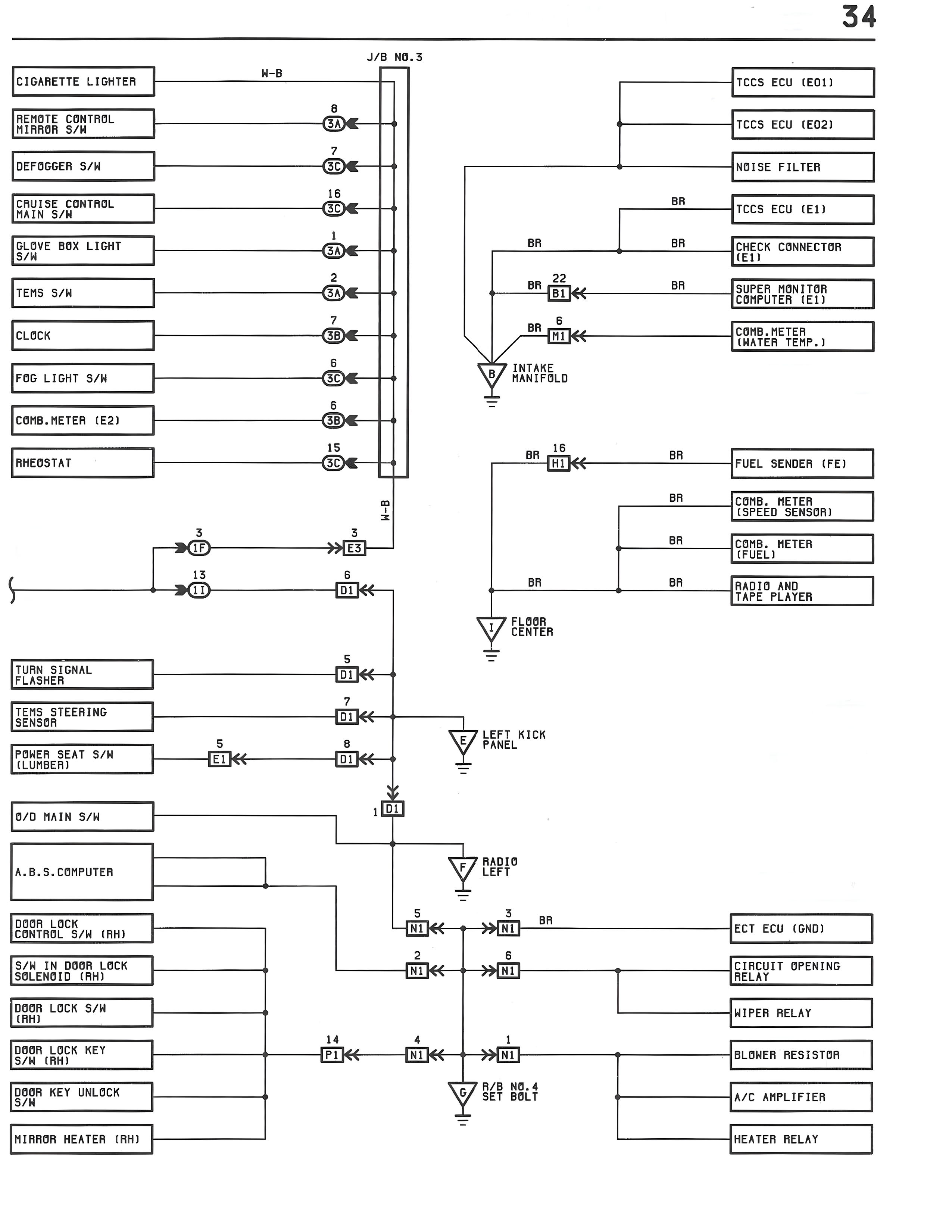

34
J/B NO.3
CIGARETTE LIGHTER W-B
REMOTE CONTROL MIRROR S/M 8 5A
DEFOGGER S/M 7 5A
CRUISE CONTROL MAIN S/M 7 5C
GLOVE BOX LIGHT S/M 1 3A
TEMS S/M 7 3A
CLOCK 7 3A
FOG LIGHT S/M 7 3C
COMB.METER (E2) 6 3B
RHEOSTAT 15 5C
W-B
1 E3 3 E3 13 I1 6 D1
TURN SIGNAL FLASHER 5 D1
TEMS STEERING SENSOR 7 D1
POWER SEAT S/M (LOUNGE) 5 E1 8 D1
O/D MAIN S/M 1 D1
A.B.S.COMPUTER
DOOR LOCK CONTROL S/M (RH) 5 N1 3 N1
S/M IN DOOR LOCK SOLENOID (RH) 2 N1 6 D1
DOOR LOCK S/M (RH)
DOOR LOCK KEY S/M (RH) 14 E1 2 N1 3 N1
DOOR KEY UNLOCK S/M
MIRROR HEATER (RH)
TCCS ECU (E01)
TCCS ECU (E02)
NOISE FILTER
BR TCCS ECU (E1)
BR BR CHECK CONNECTOR (E1)
BR 22 E1 BR SUPER MONITOR COMPUTER (E1)
BR 6 D1 BR COMB.METER (WATER TEMP.)
INTAKE MANIFOLD
BR 16 D1 BR FUEL SENDER (FE)
BR COMB. METER (SPEED SENSOR)
BR COMB. METER (FUEL)
BR BR RADIO AND TAPE PLAYER
FLOOR CENTER
LEFT KICK PANEL
RADIO LEFT
BR ECT ECU (GND)
CIRCUIT OPENING RELAY
WIPER RELAY
BLOWER RESISTOR
A/C AMPLIFIER
HEATER RELAY
R/B NO.4 SET BOLT
