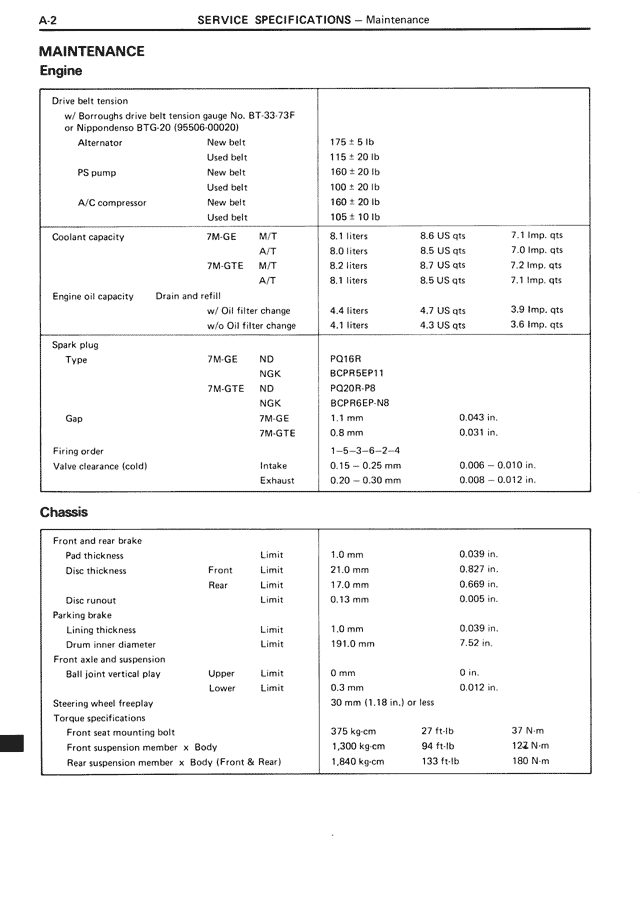

MAINTENANCE
Engine
Drive belt tension
w/ Borroughs drive belt tension gauge No. BT 33-73F
by Nippondenso BTG-20 (95506-00020)
Alternator
New belt 175 ± 5 lb
Used belt 115 ± 20 lb
PS pump
New belt 160 ± 20 lb
Used belt 100 ± 20 lb
A/C compressor
New belt 160 ± 20 lb
Used belt 105 ± 10 lb
Coolant capacity
7M-GE M/T 8.1 liters 8.6 US qts 7.1 Imp. qts
A/T 8.0 liters 8.5 US qts 7.0 Imp. qts
7M-GTE M/T 8.2 liters 8.7 US qts 7.2 Imp. qts
A/T 8.1 liters 8.5 US qts 7.1 Imp. qts
Engine oil capacity
Drain and refill
w/ Oil filter change 4.4 liters 4.7 US qts 3.9 Imp. qts
w/o Oil filter change 4.1 liters 4.3 US qts 3.6 Imp. qts
Spark plug
Type
7M-GE ND PGI6R
NGK BCPR5EP11
7M-GTE ND PQ20R-P8
NGK BCPR6EP N8
Gap
7M-GE 1.1 mm 0.043 in.
7M-GTE 0.8 mm 0.031 in.
Firing order 1—5—3—6—2—4
Valve clearance (cold)
Intake 0.15 — 0.25 mm 0.006 — 0.010 in.
Exhaust 0.20 — 0.30 mm 0.008 — 0.012 in.
Chassis
Front and rear brake
Pad thickness Limit 1.0 mm 0.039 in.
Disc thickness
Front Limit 21.0 mm 0.827 in.
Rear Limit 18.0 mm 0.669 in.
Disc runout Limit 0.13 mm 0.005 in.
Parking brake
Lining thickness Limit 1.0 mm 0.039 in.
Drum inner diameter Limit 191.0 mm 7.52 in.
Front axle and suspension
Ball joint vertical play
Upper Limit 0 mm 0 in.
Lower Limit 0.3 mm 0.012 in.
Steering wheel freeplay 30 mm (1.18 in.) or less
Torque specifications
Front seat mounting bolt 375 kg·cm 27 ft·lb 37 N·m
Front suspension member × Body 1,300 kg·cm 94 ft·lb 124 N·m
Rear suspension member × Body (Front & Rear) 1,840 kg·cm 133 ft·lb 180 N·m
