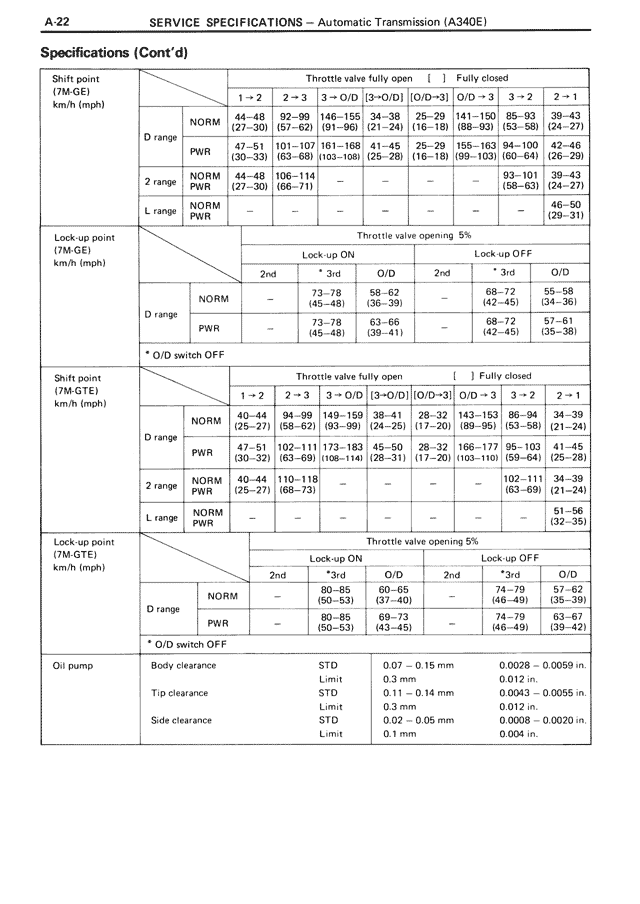

Specifications (Cont'd)
Line pressure
(7M-GE)
km/h (mph)
Throttle valve fully open [ ] Fully closed
1→2 2→3 3→O/D [3→O/D] [O/D→3] O/D→3 3→2 2→1
NORM 44–48 92–99 148–155 34–38 25–29 141–150 85–93 30–43
D range (27–30) (57–62) (91–96) (21–24) (16–18) (88–93) (53–58) (24–27)
PWR 47–51 101–107 161–168 41–45 25–29 155–163 94–100 42–46
(30–33) (63–68) (100–108) (26–28) (16–18) (96–101) (59–64) (26–29)
2 range NORM 44–48 106–114 — — — — 93–101 39–43
PWR (27–30) (66–71) (58–63) (24–27)
L range NORM — — — — — — — 46–50
PWR (29–31)
Lock-up point
(7M-GE)
km/h (mph)
Throttle valve opening 5%
Lock-up ON Lock-up OFF
2nd *3rd O/D 2nd *3rd O/D
NORM — 73–78 58–62 — 68–72 55–58
D range (45–48) (36–39) (42–45) (34–36)
PWR — 73–78 63–68 — 68–72 57–61
(45–48) (38–41) (42–45) (35–38)
* O/D switch OFF
Shift point
(7M-GTE)
km/h (mph)
Throttle valve fully open [ ] Fully closed
1→2 2→3 3→O/D [3→O/D] [O/D→3] O/D→3 3→2 2→1
NORM 40–44 94–99 149–159 38–41 28–32 143–153 88–94 34–39
D range (25–27) (58–62) (93–99) (24–25) (17–20) (89–95) (53–58) (21–24)
PWR 47–51 102–111 173–183 45–50 28–32 165–177 95–103 41–45
(30–33) (63–69) (108–114) (28–31) (17–20) (103–110) (59–64) (25–28)
2 range NORM 40–44 110–118 — — — — 102–111 34–39
PWR (25–27) (68–73) (63–69) (21–24)
L range NORM — — — — — — — 51–56
PWR (32–35)
Lock-up point
(7M-GTE)
km/h (mph)
Throttle valve opening 5%
Lock-up ON Lock-up OFF
2nd *3rd O/D 2nd *3rd O/D
NORM — 80–85 80–85 — 74–79 57–62
D range (50–53) (57–60) (46–49) (35–39)
PWR — 80–85 69–73 — 74–79 63–67
(50–53) (43–45) (46–49) (39–42)
* O/D switch OFF
Oil pump Body clearance STD 0.07 – 0.15 mm 0.0028 – 0.0059 in.
Limit 0.3 mm 0.012 in.
Tip clearance STD 0.11 – 0.14 mm 0.0043 – 0.0055 in.
Limit 0.3 mm 0.012 in.
Side clearance STD 0.02 – 0.05 mm 0.0008 – 0.0020 in.
Limit 0.1 mm 0.004 in.
