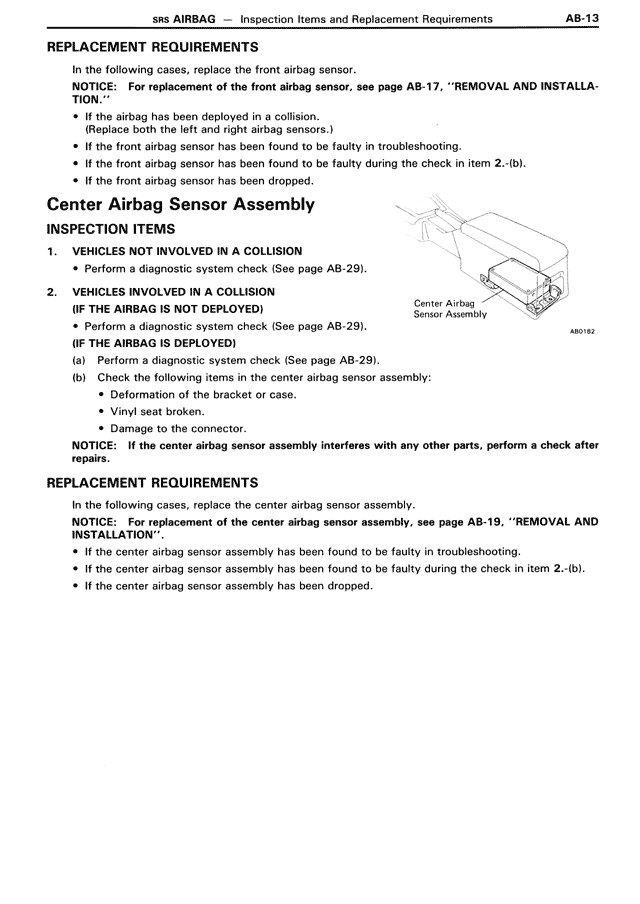

REPLACEMENT REQUIREMENTS
In the following cases, replace the front airbag sensor.
NOTICE: For replacement of the front airbag sensor, see page AB-17, "REMOVAL AND INSTALLATION."
• If the airbag has been deployed in a collision.
(Replace both the left and right airbag sensors.)
• If the front airbag sensor has been found to be faulty in troubleshooting.
• If the front airbag sensor has been found to be faulty during the check in item 2.-(b).
• If the front airbag sensor has been dropped.
Center Airbag Sensor Assembly
INSPECTION ITEMS
1. VEHICLES NOT INVOLVED IN A COLLISION
• Perform a diagnostic system check (See page AB-29).
2. VEHICLES INVOLVED IN A COLLISION
(IF THE AIRBAG IS NOT DEPLOYED)
• Perform a diagnostic system check (See page AB-29).
(IF THE AIRBAG IS DEPLOYED)
(a) Perform a diagnostic system check (See page AB-29).
(b) Check the following items in the center airbag sensor assembly:
• Deformation of the bracket or case.
• Vinyl seat broken.
• Damage to the connector.
NOTICE: If the center airbag sensor assembly interferes with any other parts, perform a check after repairs.
REPLACEMENT REQUIREMENTS
In the following cases, replace the center airbag sensor assembly.
NOTICE: For replacement of the center airbag sensor assembly, see page AB-19, "REMOVAL AND INSTALLATION".
• If the center airbag sensor assembly has been found to be faulty in troubleshooting.
• If the center airbag sensor assembly has been found to be faulty during the check in item 2.-(b).
• If the center airbag sensor assembly has been dropped.
