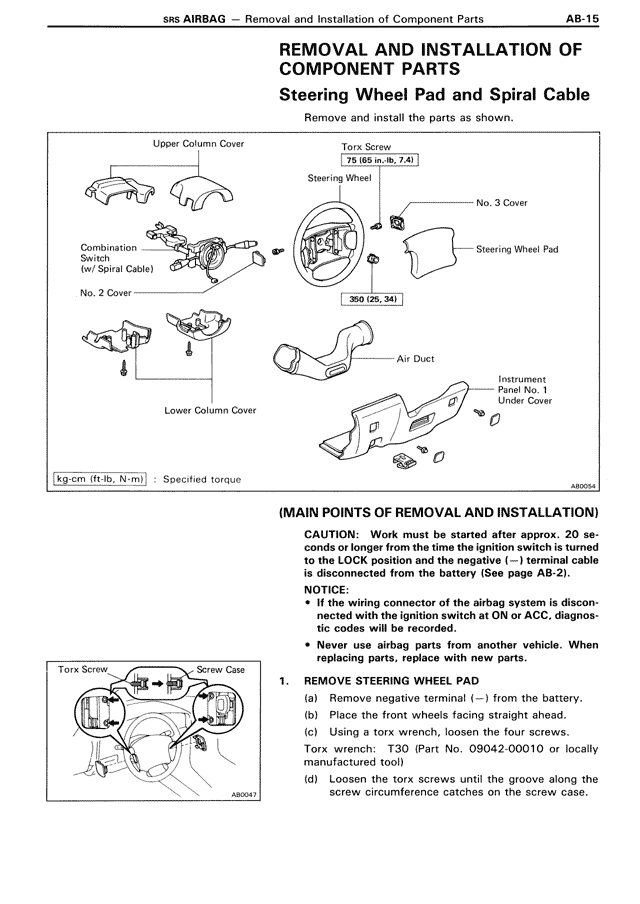

AB/SRS Airbag — Removal and Installation of Component Parts Steering Wheel Pad and Spiral Cable, page 15

SRS AIRBAG — Removal and Installation of Component Parts                    AB-15

REMOVAL AND INSTALLATION OF
COMPONENT PARTS
Steering Wheel Pad and Spiral Cable

Remove and install the parts as shown.

Upper Column Cover

Torx Screw
[75 (95 in.-lb, 7.4)]

Steering Wheel

No. 3 Cover

Combination
Switch
(w/ Spiral Cable)

Steering Wheel Pad

No. 2 Cover

[350 (25, 34)]

Air Duct

Instrument
Panel No. 1
Under Cover

Lower Column Cover

[kg·cm (ft-lb, N·m)] : Specified torque

AB0054

(MAIN POINTS OF REMOVAL AND INSTALLATION)

CAUTION: Work must be started after approx. 20 seconds or longer from the time the ignition switch is turned to the LOCK position and the negative (—) terminal cable is disconnected from the battery (See page AB-2).

NOTICE:
• If the wiring connector of the airbag system is disconnected with the ignition switch at ON or ACC, diagnostic codes will be recorded.

• Never use airbag parts from another vehicle. When replacing parts, replace with new parts.

Torx Screw                    Screw Case

1. REMOVE STEERING WHEEL PAD

(a) Remove negative terminal (—) from the battery.

(b) Place the front wheels facing straight ahead.

(c) Using a torx wrench, loosen the four screws.
Torx wrench: T30 (Part No. 09042-00010 or locally
manufactured tool)

(d) Loosen the torx screws until the groove along the
screw circumference catches on the screw case.

AB0043
